SAS-Optimize-Customlize-UserDetailService
一、前言
本篇文章会带大家实现自定义的UserDetailsService，从数据库获取用户及权限信息；也会带大家了解一下框架是怎么获取用户信息的。
二、实现步骤
- 初始化数据库表结构
- 编写相关表的实体、mapper接口和mapper文件
- 实现
UserDetailsService接口，实现loadUserByUsername抽象方法。
三、初始化数据库表结构
数据库表结构使用经典的RBAC模型，一共有五张表：用户、角色、权限、用户角色关联和角色权限关联表；关于三方登录账户信息表需要的可以加一下，该表主要存储三方登录获取到的用户信息。因为只是示例，所以表中字段都很简陋，大家替换成自己的用户表即可。
SET NAMES utf8mb4;
SET
FOREIGN_KEY_CHECKS = 0;
-- ----------------------------
-- Table structure for oauth2_basic_user
-- ----------------------------
DROP TABLE IF EXISTS `oauth2_basic_user`;
CREATE TABLE `oauth2_basic_user`
(
`id` int(11) NOT NULL AUTO_INCREMENT COMMENT '自增id',
`name` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NULL DEFAULT NULL COMMENT '用户名、昵称',
`account` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NULL DEFAULT NULL COMMENT '账号',
`password` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NULL DEFAULT NULL COMMENT '密码',
`mobile` varchar(11) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NULL DEFAULT NULL COMMENT '手机号',
`email` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NULL DEFAULT NULL COMMENT '邮箱',
`avatar_url` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NULL DEFAULT NULL COMMENT '头像地址',
`deleted` tinyint(1) NULL DEFAULT NULL COMMENT '是否已删除',
`source_from` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NULL DEFAULT NULL COMMENT '用户来源',
`create_time` datetime(0) NULL DEFAULT NULL COMMENT '创建时间',
`update_time` datetime(0) NULL DEFAULT NULL COMMENT '修改时间',
PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 2 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_bin COMMENT = '基础用户信息表';
-- ----------------------------
-- Records of oauth2_basic_user
-- ----------------------------
BEGIN;
INSERT INTO `oauth2_basic_user`
VALUES (1, '云逸', 'admin', '$2a$10$K7nVcC.75YZSZU1Fq6G6buYujG.dolGYGPboh7eQbtkdFmB0EfN5K', '17683906991',
'17683906991@163.com', NULL, 0, 'system', '2023-06-20 15:20:42', '2023-06-20 15:20:42');
COMMIT;
-- ----------------------------
-- Table structure for oauth2_third_Account
-- ----------------------------
DROP TABLE IF EXISTS `oauth2_third_Account`;
CREATE TABLE `oauth2_third_account`
(
`id` int(11) NOT NULL AUTO_INCREMENT COMMENT '自增id',
`user_id` int(11) NULL DEFAULT NULL COMMENT '用户表主键',
`unique_id` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NULL DEFAULT NULL COMMENT '三方登录唯一id',
`type` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NULL DEFAULT NULL COMMENT '三方登录类型',
`blog` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NULL DEFAULT NULL COMMENT '博客地址',
`location` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NULL DEFAULT NULL COMMENT '地址',
`create_time` datetime(0) NULL DEFAULT NULL COMMENT '绑定时间',
`update_time` datetime(0) NULL DEFAULT NULL COMMENT '修改时间',
PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 1 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_bin COMMENT = '三方登录账户信息表';
-- ----------------------------
-- Table structure for sys_authority
-- ----------------------------
DROP TABLE IF EXISTS `sys_authority`;
CREATE TABLE `sys_authority`
(
`id` int(11) NOT NULL AUTO_INCREMENT COMMENT '菜单自增ID',
`name` varchar(16) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NOT NULL COMMENT '菜单名称',
`menu_pid` int(11) NOT NULL COMMENT '父菜单ID',
`url` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NOT NULL COMMENT '跳转URL',
`authority` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_bin NULL DEFAULT NULL COMMENT '所需权限',
`sort` tinyint(4) NULL DEFAULT NULL COMMENT '排序',
`type` tinyint(4) NOT NULL COMMENT '0:菜单,1:接口',
`deleted` tinyint(1) NOT NULL COMMENT '0:启用,1:删除',
`create_time` datetime(0) NOT NULL COMMENT '创建时间',
`create_user_id` int(11) NOT NULL COMMENT '创建人',
PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 4 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_bin COMMENT = '系统菜单表';
-- ----------------------------
-- Records of sys_authority
-- ----------------------------
BEGIN;
INSERT INTO `sys_authority`
VALUES (1, '系统管理', 0, '/system', 'system', 0, 0, 0, '2022-03-25 23:52:03', 1),
(2, 'app', 0, '/**', 'app', 1, 1, 0, '2023-06-20 15:18:49', 1),
(3, 'web', 0, '/**', 'web', 2, 1, 0, '2023-06-20 15:19:12', 1);
COMMIT;
-- ----------------------------
-- Table structure for sys_role
-- ----------------------------
DROP TABLE IF EXISTS `sys_role`;
CREATE TABLE `sys_role`
(
`id` int(11) NOT NULL AUTO_INCREMENT COMMENT '角色自增ID',
`role_name` varchar(16) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL COMMENT '角色名',
`deleted` tinyint(1) NULL DEFAULT NULL COMMENT '0:启用,1:删除',
`sort` int(11) NULL DEFAULT NULL COMMENT '排序',
`create_time` datetime(0) NOT NULL COMMENT '创建时间',
`create_user_id` int(11) NOT NULL COMMENT '创建人',
PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 2 CHARACTER SET = utf8 COLLATE = utf8_general_ci COMMENT = '系统角色表';
-- ----------------------------
-- Records of sys_role
-- ----------------------------
BEGIN;
INSERT INTO `sys_role`
VALUES (1, '管理员', 0, 0, '2022-03-25 23:51:04', 1);
COMMIT;
-- ----------------------------
-- Table structure for sys_role_authority
-- ----------------------------
DROP TABLE IF EXISTS `sys_role_authority`;
CREATE TABLE `sys_role_authority`
(
`id` int(11) NOT NULL AUTO_INCREMENT COMMENT '角色菜单关联表自增ID',
`role_id` int(16) NOT NULL COMMENT '角色ID',
`authority_id` int(11) NOT NULL COMMENT '权限菜单ID',
PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 4 CHARACTER SET = utf8 COLLATE = utf8_general_ci COMMENT = '角色菜单多对多关联表';
-- ----------------------------
-- Records of sys_role_authority
-- ----------------------------
BEGIN;
INSERT INTO `sys_role_authority`
VALUES (1, 1, 1),
(2, 1, 2),
(3, 1, 3);
COMMIT;
-- ----------------------------
-- Table structure for sys_user_role
-- ----------------------------
DROP TABLE IF EXISTS `sys_user_role`;
CREATE TABLE `sys_user_role`
(
`id` int(11) NOT NULL AUTO_INCREMENT,
`role_id` int(16) NULL DEFAULT NULL COMMENT '角色ID',
`user_id` int(18) NULL DEFAULT NULL COMMENT '用户ID',
PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 2 CHARACTER SET = utf8 COLLATE = utf8_general_ci;
-- ----------------------------
-- Records of sys_user_role
-- ----------------------------
BEGIN;
INSERT INTO `sys_user_role`
VALUES (1, 1, 1);
COMMIT;
SET
FOREIGN_KEY_CHECKS = 1;
四、通过代码生成器生成entity、mapper、mapper文件
这些东西在使用MybatisPlus时基本是固定的，所以没必要去浪费时间，直接通过生成器生成代码。 文档地址
1. 项目中引入生成器依赖
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-generator</artifactId>
<version>3.5.3.1</version>
</dependency>
<dependency>
<groupId>org.apache.velocity</groupId>
<artifactId>velocity-engine-core</artifactId>
<version>2.3</version>
</dependency>
2. 编写生成代码
package com.example;
import com.baomidou.mybatisplus.generator.FastAutoGenerator;
import com.baomidou.mybatisplus.generator.config.DataSourceConfig;
import java.util.Arrays;
import java.util.Collections;
import java.util.List;
/**
* 代码生成测试
*
* @author vains
*/
public class CodeGeneratorTest {
private static final DataSourceConfig.Builder DATA_SOURCE_CONFIG = new DataSourceConfig.Builder("jdbc:mysql://localhost:3306/authorization-example?serverTimezone=UTC&userUnicode=true&characterEncoding=utf-8", "root", "root");
public static void main(String[] args) {
FastAutoGenerator.create(DATA_SOURCE_CONFIG)
// 全局配置
.globalConfig((scanner, builder) -> builder.author(scanner.apply("请输入作者名称？")).fileOverride())
// 包配置
.packageConfig((scanner, builder) -> builder.parent(scanner.apply("请输入包名？")))
// 策略配置
.strategyConfig((scanner, builder) -> builder.addInclude(getTables(scanner.apply("请输入表名，多个英文逗号分隔？所有输入 all")))
.controllerBuilder().enableRestStyle().enableHyphenStyle()
.entityBuilder().enableLombok()
// .addTableFills(
// new Column("create_time", FieldFill.INSERT)
// )
.build())
/*
模板引擎配置，默认 Velocity 可选模板引擎 Beetl 或 Freemarker
.templateEngine(new BeetlTemplateEngine())
.templateEngine(new FreemarkerTemplateEngine())
*/
.execute();
}
protected static List<String> getTables(String tables) {
return "all".equals(tables) ? Collections.emptyList() : Arrays.asList(tables.split(","));
}
}
3. 说明
生成后代码会在D盘根目录下，按照控制台提示输入包名、作者和表名就会在d盘根目录生成对应的持久层代码，生成的代码就不贴出来了，太长了，后边会贴出核心代码；结构如下
五、实现自定义的UserDetailsService
1. Oauth2BasicUser实体类实现UserDetails接口
实现该接口的原因有两个，
- 一是可以用自己的用户属性替换框架默认的用户属性，
- 二是因为
UserDetailsService的loadUserByUsername方法返回的类型只能是UserDetails及其子类。
有就是要注意非数据库字段要添加注解@TableField(exist = false)声明该字段非数据库列，如下边代码中的authorities属性
package com.example.entity;
import com.baomidou.mybatisplus.annotation.*;
import java.io.Serial;
import java.io.Serializable;
import java.time.LocalDateTime;
import java.util.Collection;
import com.fasterxml.jackson.annotation.JsonIgnoreProperties;
import com.fasterxml.jackson.databind.annotation.JsonSerialize;
import lombok.Getter;
import lombok.Setter;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;
/**
* <p>
* 基础用户信息表
* </p>
*
* @author vains
*/
@Getter
@Setter
@JsonSerialize
@TableName("oauth2_basic_user")
@JsonIgnoreProperties(ignoreUnknown = true)
public class Oauth2BasicUser implements UserDetails, Serializable {
@Serial
private static final long serialVersionUID = 1L;
/**
* 自增id
*/
@TableId(value = "id", type = IdType.AUTO)
private Integer id;
/**
* 用户名、昵称
*/
private String name;
/**
* 账号
*/
private String account;
/**
* 密码
*/
private String password;
/**
* 手机号
*/
private String mobile;
/**
* 邮箱
*/
private String email;
/**
* 头像地址
*/
private String avatarUrl;
/**
* 是否已删除
*/
private Boolean deleted;
/**
* 用户来源
*/
private String sourceFrom;
/**
* 创建时间
*/
@TableField(fill = FieldFill.INSERT)
private LocalDateTime createTime;
/**
* 修改时间
*/
@TableField(fill = FieldFill.INSERT_UPDATE)
private LocalDateTime updateTime;
/**
* 权限信息
* 非数据库字段
*/
@TableField(exist = false)
private Collection<? extends GrantedAuthority> authorities;
@Override
public Collection<? extends GrantedAuthority> getAuthorities() {
return this.authorities;
}
@Override
public String getUsername() {
return this.account;
}
@Override
public boolean isAccountNonExpired() {
return true;
}
@Override
public boolean isAccountNonLocked() {
return true;
}
@Override
public boolean isCredentialsNonExpired() {
return true;
}
@Override
public boolean isEnabled() {
return !this.deleted;
}
}
2. Oauth2BasicUserServiceImpl实现UserDetailsService 接口
package com.example.service.impl;
import com.baomidou.mybatisplus.core.conditions.query.LambdaQueryWrapper;
import com.baomidou.mybatisplus.core.toolkit.ObjectUtils;
import com.baomidou.mybatisplus.core.toolkit.Wrappers;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.example.entity.Oauth2BasicUser;
import com.example.entity.SysAuthority;
import com.example.entity.SysRoleAuthority;
import com.example.entity.SysUserRole;
import com.example.mapper.Oauth2BasicUserMapper;
import com.example.mapper.SysAuthorityMapper;
import com.example.mapper.SysRoleAuthorityMapper;
import com.example.mapper.SysUserRoleMapper;
import com.example.service.IOauth2BasicUserService;
import lombok.RequiredArgsConstructor;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Service;
import java.util.Collections;
import java.util.List;
import java.util.Optional;
import java.util.Set;
import java.util.stream.Collectors;
/**
* <p>
* 基础用户信息表 服务实现类
* </p>
*
* @author vains
*/
@Service
@RequiredArgsConstructor
public class Oauth2BasicUserServiceImpl extends ServiceImpl<Oauth2BasicUserMapper, Oauth2BasicUser> implements IOauth2BasicUserService, UserDetailsService {
private final SysUserRoleMapper sysUserRoleMapper;
private final SysAuthorityMapper sysAuthorityMapper;
private final SysRoleAuthorityMapper sysRoleAuthorityMapper;
@Override
public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
// 在Security中“username”就代表了用户登录时输入的账号，在重写该方法时它可以代表以下内容：账号、手机号、邮箱、姓名等
// “username”在数据库中不一定非要是一样的列，它可以是手机号、邮箱，也可以都是，最主要的目的就是根据输入的内容获取到对应的用户信息，如下方所示
// 通过传入的账号信息查询对应的用户信息
LambdaQueryWrapper<Oauth2BasicUser> wrapper = Wrappers.lambdaQuery(Oauth2BasicUser.class)
.or(o -> o.eq(Oauth2BasicUser::getEmail, username))
.or(o -> o.eq(Oauth2BasicUser::getMobile, username))
.or(o -> o.eq(Oauth2BasicUser::getAccount, username));
Oauth2BasicUser basicUser = baseMapper.selectOne(wrapper);
if (basicUser == null) {
throw new UsernameNotFoundException("账号不存在");
}
// 通过用户角色关联表查询对应的角色
List<SysUserRole> userRoles = sysUserRoleMapper.selectList(Wrappers.lambdaQuery(SysUserRole.class).eq(SysUserRole::getUserId, basicUser.getId()));
List<Integer> rolesId = Optional.ofNullable(userRoles).orElse(Collections.emptyList()).stream().map(SysUserRole::getRoleId).collect(Collectors.toList());
if (ObjectUtils.isEmpty(rolesId)) {
return basicUser;
}
// 通过角色菜单关联表查出对应的菜单
List<SysRoleAuthority> roleMenus = sysRoleAuthorityMapper.selectList(Wrappers.lambdaQuery(SysRoleAuthority.class).in(SysRoleAuthority::getRoleId, rolesId));
List<Integer> menusId = Optional.ofNullable(roleMenus).orElse(Collections.emptyList()).stream().map(SysRoleAuthority::getAuthorityId).collect(Collectors.toList());
if (ObjectUtils.isEmpty(menusId)) {
return basicUser;
}
// 根据菜单ID查出菜单
List<SysAuthority> menus = sysAuthorityMapper.selectBatchIds(menusId);
Set<SimpleGrantedAuthority> authorities = Optional.ofNullable(menus).orElse(Collections.emptyList()).stream().map(SysAuthority::getUrl).map(SimpleGrantedAuthority::new).collect(Collectors.toSet());
basicUser.setAuthorities(authorities);
return basicUser;
}
}
3. 编写MybatisPlus配置类
package com.example.config;
import com.baomidou.mybatisplus.annotation.DbType;
import com.baomidou.mybatisplus.core.handlers.MetaObjectHandler;
import com.baomidou.mybatisplus.extension.plugins.MybatisPlusInterceptor;
import com.baomidou.mybatisplus.extension.plugins.inner.PaginationInnerInterceptor;
import org.apache.ibatis.reflection.MetaObject;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import java.time.LocalDateTime;
/**
* MybatisPlus分页插件
*
* @author vains
*/
@Configuration
// Mapper接口的包路径，记得替换为自己的mapper接口包路径
@MapperScan("com.example.mapper")
public class MybatisPlusConfig {
/**
* 新的分页插件,一缓和二缓遵循mybatis的规则,
* 需要设置 MybatisConfiguration#useDeprecatedExecutor = false
* 避免缓存出现问题(该属性会在旧插件移除后一同移除)
*/
@Bean
public MybatisPlusInterceptor mybatisPlusInterceptor() {
MybatisPlusInterceptor interceptor = new MybatisPlusInterceptor();
interceptor.addInnerInterceptor(new PaginationInnerInterceptor(DbType.MYSQL));
return interceptor;
}
/**
* 这里对应的是实体类中的`@TableField(fill = FieldFill.INSERT_UPDATE)`注解
* fill的值可以是INSERT、UPDATE和INSERT_UPDATE
* INSERT：插入时填充字段
* UPDATE：修改时填充字段
* INSERT_UPDATE：插入与修改时都触发
*/
@Bean
public MetaObjectHandler metaObjectHandler() {
return new MetaObjectHandler() {
@Override
public void insertFill(MetaObject metaObject) {
// 添加自动填充逻辑
this.strictInsertFill(metaObject, "createTime", LocalDateTime::now, LocalDateTime.class);
this.strictInsertFill(metaObject, "updateTime", LocalDateTime::now, LocalDateTime.class);
}
@Override
public void updateFill(MetaObject metaObject) {
// 修改自动填充逻辑
this.strictUpdateFill(metaObject, "updateTime", LocalDateTime::now, LocalDateTime.class);
}
};
}
}
4. application.yml中添加配置
spring:
datasource:
driver-class-name: com.mysql.cj.jdbc.Driver
url: jdbc:mysql://localhost:3306/authorization-example?serverTimezone=UTC&userUnicode=true&characterEncoding=utf-8
username: root
password: root
# Mybatis-Plus 配置
mybatis-plus:
# 扫描mapper文件
mapper-locations:
- classpath:com/vains/mapper/xml/*Mapper.xml
5. 移除AuthorizationConfig的用户配置
完整代码如下
package com.example.config;
import com.example.authorization.device.DeviceClientAuthenticationConverter;
import com.example.authorization.device.DeviceClientAuthenticationProvider;
import com.example.authorization.sms.SmsCaptchaGrantAuthenticationConverter;
import com.example.authorization.sms.SmsCaptchaGrantAuthenticationProvider;
import com.example.constant.SecurityConstants;
import com.example.util.SecurityUtils;
import com.nimbusds.jose.jwk.JWKSet;
import com.nimbusds.jose.jwk.RSAKey;
import com.nimbusds.jose.jwk.source.ImmutableJWKSet;
import com.nimbusds.jose.jwk.source.JWKSource;
import com.nimbusds.jose.proc.SecurityContext;
import lombok.SneakyThrows;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.MediaType;
import org.springframework.jdbc.core.JdbcTemplate;
import org.springframework.security.access.annotation.Secured;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.Customizer;
import org.springframework.security.config.annotation.authentication.configuration.AuthenticationConfiguration;
import org.springframework.security.config.annotation.method.configuration.EnableMethodSecurity;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.oauth2.core.AuthorizationGrantType;
import org.springframework.security.oauth2.core.ClientAuthenticationMethod;
import org.springframework.security.oauth2.core.oidc.OidcScopes;
import org.springframework.security.oauth2.jwt.JwtClaimsSet;
import org.springframework.security.oauth2.jwt.JwtDecoder;
import org.springframework.security.oauth2.server.authorization.JdbcOAuth2AuthorizationConsentService;
import org.springframework.security.oauth2.server.authorization.JdbcOAuth2AuthorizationService;
import org.springframework.security.oauth2.server.authorization.OAuth2AuthorizationConsentService;
import org.springframework.security.oauth2.server.authorization.OAuth2AuthorizationService;
import org.springframework.security.oauth2.server.authorization.client.JdbcRegisteredClientRepository;
import org.springframework.security.oauth2.server.authorization.client.RegisteredClient;
import org.springframework.security.oauth2.server.authorization.client.RegisteredClientRepository;
import org.springframework.security.oauth2.server.authorization.config.annotation.web.configuration.OAuth2AuthorizationServerConfiguration;
import org.springframework.security.oauth2.server.authorization.config.annotation.web.configurers.OAuth2AuthorizationServerConfigurer;
import org.springframework.security.oauth2.server.authorization.settings.AuthorizationServerSettings;
import org.springframework.security.oauth2.server.authorization.settings.ClientSettings;
import org.springframework.security.oauth2.server.authorization.token.JwtEncodingContext;
import org.springframework.security.oauth2.server.authorization.token.OAuth2TokenCustomizer;
import org.springframework.security.oauth2.server.authorization.token.OAuth2TokenGenerator;
import org.springframework.security.oauth2.server.resource.authentication.JwtAuthenticationConverter;
import org.springframework.security.oauth2.server.resource.authentication.JwtGrantedAuthoritiesConverter;
import org.springframework.security.web.DefaultSecurityFilterChain;
import org.springframework.security.web.SecurityFilterChain;
import org.springframework.security.web.authentication.LoginUrlAuthenticationEntryPoint;
import org.springframework.security.web.util.matcher.MediaTypeRequestMatcher;
import java.security.KeyPair;
import java.security.KeyPairGenerator;
import java.security.interfaces.RSAPrivateKey;
import java.security.interfaces.RSAPublicKey;
import java.util.*;
import java.util.stream.Collectors;
/**
* 认证配置
* {@link EnableMethodSecurity} 开启全局方法认证，启用JSR250注解支持，启用注解 {@link Secured} 支持，
* 在Spring Security 6.0版本中将@Configuration注解从@EnableWebSecurity, @EnableMethodSecurity, @EnableGlobalMethodSecurity
* 和 @EnableGlobalAuthentication 中移除，使用这些注解需手动添加 @Configuration 注解
* {@link EnableWebSecurity} 注解有 两个作用:
* 1. 加载了WebSecurityConfiguration配置类, 配置安全认证策略。
* 2. 加载了AuthenticationConfiguration, 配置了认证信息。
*
* @author vains
*/
@Configuration
@EnableWebSecurity
@EnableMethodSecurity(jsr250Enabled = true, securedEnabled = true)
public class AuthorizationConfig {
private static final String CUSTOM_CONSENT_PAGE_URI = "/oauth2/consent";
/**
* 配置端点的过滤器链
*
* @param http spring security核心配置类
* @return 过滤器链
* @throws Exception 抛出
*/
@Bean
public SecurityFilterChain authorizationServerSecurityFilterChain(HttpSecurity http,
RegisteredClientRepository registeredClientRepository,
AuthorizationServerSettings authorizationServerSettings) throws Exception {
// 配置默认的设置，忽略认证端点的csrf校验
OAuth2AuthorizationServerConfiguration.applyDefaultSecurity(http);
// 新建设备码converter和provider
DeviceClientAuthenticationConverter deviceClientAuthenticationConverter =
new DeviceClientAuthenticationConverter(
authorizationServerSettings.getDeviceAuthorizationEndpoint());
DeviceClientAuthenticationProvider deviceClientAuthenticationProvider =
new DeviceClientAuthenticationProvider(registeredClientRepository);
http.getConfigurer(OAuth2AuthorizationServerConfigurer.class)
// 开启OpenID Connect 1.0协议相关端点
.oidc(Customizer.withDefaults())
// 设置自定义用户确认授权页
.authorizationEndpoint(authorizationEndpoint -> authorizationEndpoint.consentPage(CUSTOM_CONSENT_PAGE_URI))
// 设置设备码用户验证url(自定义用户验证页)
.deviceAuthorizationEndpoint(deviceAuthorizationEndpoint ->
deviceAuthorizationEndpoint.verificationUri("/activate")
)
// 设置验证设备码用户确认页面
.deviceVerificationEndpoint(deviceVerificationEndpoint ->
deviceVerificationEndpoint.consentPage(CUSTOM_CONSENT_PAGE_URI)
)
.clientAuthentication(clientAuthentication ->
// 客户端认证添加设备码的converter和provider
clientAuthentication
.authenticationConverter(deviceClientAuthenticationConverter)
.authenticationProvider(deviceClientAuthenticationProvider)
);
http
// 当未登录时访问认证端点时重定向至login页面
.exceptionHandling((exceptions) -> exceptions
.defaultAuthenticationEntryPointFor(
new LoginUrlAuthenticationEntryPoint("/login"),
new MediaTypeRequestMatcher(MediaType.TEXT_HTML)
)
)
// 处理使用access token访问用户信息端点和客户端注册端点
.oauth2ResourceServer((resourceServer) -> resourceServer
.jwt(Customizer.withDefaults()));
// 自定义短信认证登录转换器
SmsCaptchaGrantAuthenticationConverter converter = new SmsCaptchaGrantAuthenticationConverter();
// 自定义短信认证登录认证提供
SmsCaptchaGrantAuthenticationProvider provider = new SmsCaptchaGrantAuthenticationProvider();
http.getConfigurer(OAuth2AuthorizationServerConfigurer.class)
// 让认证服务器元数据中有自定义的认证方式
.authorizationServerMetadataEndpoint(metadata -> metadata.authorizationServerMetadataCustomizer(customizer -> customizer.grantType(SecurityConstants.GRANT_TYPE_SMS_CODE)))
// 添加自定义grant_type——短信认证登录
.tokenEndpoint(tokenEndpoint -> tokenEndpoint
.accessTokenRequestConverter(converter)
.authenticationProvider(provider));
DefaultSecurityFilterChain build = http.build();
// 从框架中获取provider中所需的bean
OAuth2TokenGenerator<?> tokenGenerator = http.getSharedObject(OAuth2TokenGenerator.class);
AuthenticationManager authenticationManager = http.getSharedObject(AuthenticationManager.class);
OAuth2AuthorizationService authorizationService = http.getSharedObject(OAuth2AuthorizationService.class);
// 以上三个bean在build()方法之后调用是因为调用build方法时框架会尝试获取这些类，
// 如果获取不到则初始化一个实例放入SharedObject中，所以要在build方法调用之后获取
// 在通过set方法设置进provider中，但是如果在build方法之后调用authenticationProvider(provider)
// 框架会提示unsupported_grant_type，因为已经初始化完了，在添加就不会生效了
provider.setTokenGenerator(tokenGenerator);
provider.setAuthorizationService(authorizationService);
provider.setAuthenticationManager(authenticationManager);
return build;
}
/**
* 配置认证相关的过滤器链
*
* @param http spring security核心配置类
* @return 过滤器链
* @throws Exception 抛出
*/
@Bean
public SecurityFilterChain defaultSecurityFilterChain(HttpSecurity http) throws Exception {
http.authorizeHttpRequests((authorize) -> authorize
// 放行静态资源
.requestMatchers("/assets/**", "/webjars/**", "/login", "/getCaptcha", "/getSmsCaptcha").permitAll()
.anyRequest().authenticated()
)
// 指定登录页面
.formLogin(formLogin ->
formLogin.loginPage("/login")
);
// 添加BearerTokenAuthenticationFilter，将认证服务当做一个资源服务，解析请求头中的token
http.oauth2ResourceServer((resourceServer) -> resourceServer
.jwt(Customizer.withDefaults())
.accessDeniedHandler(SecurityUtils::exceptionHandler)
.authenticationEntryPoint(SecurityUtils::exceptionHandler)
);
return http.build();
}
/**
* 自定义jwt，将权限信息放至jwt中
*
* @return OAuth2TokenCustomizer的实例
*/
@Bean
public OAuth2TokenCustomizer<JwtEncodingContext> oAuth2TokenCustomizer() {
return context -> {
// 检查登录用户信息是不是UserDetails，排除掉没有用户参与的流程
if (context.getPrincipal().getPrincipal() instanceof UserDetails user) {
// 获取申请的scopes
Set<String> scopes = context.getAuthorizedScopes();
// 获取用户的权限
Collection<? extends GrantedAuthority> authorities = user.getAuthorities();
// 提取权限并转为字符串
Set<String> authoritySet = Optional.ofNullable(authorities).orElse(Collections.emptyList()).stream()
// 获取权限字符串
.map(GrantedAuthority::getAuthority)
// 去重
.collect(Collectors.toSet());
// 合并scope与用户信息
authoritySet.addAll(scopes);
JwtClaimsSet.Builder claims = context.getClaims();
// 将权限信息放入jwt的claims中（也可以生成一个以指定字符分割的字符串放入）
claims.claim(SecurityConstants.AUTHORITIES_KEY, authoritySet);
// 放入其它自定内容
// 角色、头像...
}
};
}
/**
* 自定义jwt解析器，设置解析出来的权限信息的前缀与在jwt中的key
*
* @return jwt解析器 JwtAuthenticationConverter
*/
@Bean
public JwtAuthenticationConverter jwtAuthenticationConverter() {
JwtGrantedAuthoritiesConverter grantedAuthoritiesConverter = new JwtGrantedAuthoritiesConverter();
// 设置解析权限信息的前缀，设置为空是去掉前缀
grantedAuthoritiesConverter.setAuthorityPrefix("");
// 设置权限信息在jwt claims中的key
grantedAuthoritiesConverter.setAuthoritiesClaimName(SecurityConstants.AUTHORITIES_KEY);
JwtAuthenticationConverter jwtAuthenticationConverter = new JwtAuthenticationConverter();
jwtAuthenticationConverter.setJwtGrantedAuthoritiesConverter(grantedAuthoritiesConverter);
return jwtAuthenticationConverter;
}
/**
* 将AuthenticationManager注入ioc中，其它需要使用地方可以直接从ioc中获取
* @param authenticationConfiguration 导出认证配置
* @return AuthenticationManager 认证管理器
*/
@Bean
@SneakyThrows
public AuthenticationManager authenticationManager(AuthenticationConfiguration authenticationConfiguration) {
return authenticationConfiguration.getAuthenticationManager();
}
/**
* 配置密码解析器，使用BCrypt的方式对密码进行加密和验证
*
* @return BCryptPasswordEncoder
*/
@Bean
public PasswordEncoder passwordEncoder() {
return new BCryptPasswordEncoder();
}
/**
* 配置客户端Repository
*
* @param jdbcTemplate db 数据源信息
* @param passwordEncoder 密码解析器
* @return 基于数据库的repository
*/
@Bean
public RegisteredClientRepository registeredClientRepository(JdbcTemplate jdbcTemplate, PasswordEncoder passwordEncoder) {
RegisteredClient registeredClient = RegisteredClient.withId(UUID.randomUUID().toString())
// 客户端id
.clientId("messaging-client")
// 客户端秘钥，使用密码解析器加密
.clientSecret(passwordEncoder.encode("123456"))
// 客户端认证方式，基于请求头的认证
.clientAuthenticationMethod(ClientAuthenticationMethod.CLIENT_SECRET_BASIC)
// 配置资源服务器使用该客户端获取授权时支持的方式
.authorizationGrantType(AuthorizationGrantType.AUTHORIZATION_CODE)
.authorizationGrantType(AuthorizationGrantType.REFRESH_TOKEN)
.authorizationGrantType(AuthorizationGrantType.CLIENT_CREDENTIALS)
// 客户端添加自定义认证
.authorizationGrantType(new AuthorizationGrantType(SecurityConstants.GRANT_TYPE_SMS_CODE))
// 授权码模式回调地址，oauth2.1已改为精准匹配，不能只设置域名，并且屏蔽了localhost，本机使用127.0.0.1访问
.redirectUri("http://127.0.0.1:8080/login/oauth2/code/messaging-client-oidc")
.redirectUri("https://www.baidu.com")
// 该客户端的授权范围，OPENID与PROFILE是IdToken的scope，获取授权时请求OPENID的scope时认证服务会返回IdToken
.scope(OidcScopes.OPENID)
.scope(OidcScopes.PROFILE)
// 自定scope
.scope("message.read")
.scope("message.write")
// 客户端设置，设置用户需要确认授权
.clientSettings(ClientSettings.builder().requireAuthorizationConsent(true).build())
.build();
// 基于db存储客户端，还有一个基于内存的实现 InMemoryRegisteredClientRepository
JdbcRegisteredClientRepository registeredClientRepository = new JdbcRegisteredClientRepository(jdbcTemplate);
// 初始化客户端
RegisteredClient repositoryByClientId = registeredClientRepository.findByClientId(registeredClient.getClientId());
if (repositoryByClientId == null) {
registeredClientRepository.save(registeredClient);
}
// 设备码授权客户端
RegisteredClient deviceClient = RegisteredClient.withId(UUID.randomUUID().toString())
.clientId("device-message-client")
// 公共客户端
.clientAuthenticationMethod(ClientAuthenticationMethod.NONE)
// 设备码授权
.authorizationGrantType(AuthorizationGrantType.DEVICE_CODE)
.authorizationGrantType(AuthorizationGrantType.REFRESH_TOKEN)
// 自定scope
.scope("message.read")
.scope("message.write")
.build();
RegisteredClient byClientId = registeredClientRepository.findByClientId(deviceClient.getClientId());
if (byClientId == null) {
registeredClientRepository.save(deviceClient);
}
// PKCE客户端
RegisteredClient pkceClient = RegisteredClient.withId(UUID.randomUUID().toString())
.clientId("pkce-message-client")
// 公共客户端
.clientAuthenticationMethod(ClientAuthenticationMethod.NONE)
// 授权码模式，因为是扩展授权码流程，所以流程还是授权码的流程，改变的只是参数
.authorizationGrantType(AuthorizationGrantType.AUTHORIZATION_CODE)
.authorizationGrantType(AuthorizationGrantType.REFRESH_TOKEN)
// 授权码模式回调地址，oauth2.1已改为精准匹配，不能只设置域名，并且屏蔽了localhost，本机使用127.0.0.1访问
.redirectUri("http://127.0.0.1:8080/login/oauth2/code/messaging-client-oidc")
.clientSettings(ClientSettings.builder().requireProofKey(Boolean.TRUE).build())
// 自定scope
.scope("message.read")
.scope("message.write")
.build();
RegisteredClient findPkceClient = registeredClientRepository.findByClientId(pkceClient.getClientId());
if (findPkceClient == null) {
registeredClientRepository.save(pkceClient);
}
return registeredClientRepository;
}
/**
* 配置基于db的oauth2的授权管理服务
*
* @param jdbcTemplate db数据源信息
* @param registeredClientRepository 上边注入的客户端repository
* @return JdbcOAuth2AuthorizationService
*/
@Bean
public OAuth2AuthorizationService authorizationService(JdbcTemplate jdbcTemplate, RegisteredClientRepository registeredClientRepository) {
// 基于db的oauth2认证服务，还有一个基于内存的服务实现InMemoryOAuth2AuthorizationService
return new JdbcOAuth2AuthorizationService(jdbcTemplate, registeredClientRepository);
}
/**
* 配置基于db的授权确认管理服务
*
* @param jdbcTemplate db数据源信息
* @param registeredClientRepository 客户端repository
* @return JdbcOAuth2AuthorizationConsentService
*/
@Bean
public OAuth2AuthorizationConsentService authorizationConsentService(JdbcTemplate jdbcTemplate, RegisteredClientRepository registeredClientRepository) {
// 基于db的授权确认管理服务，还有一个基于内存的服务实现InMemoryOAuth2AuthorizationConsentService
return new JdbcOAuth2AuthorizationConsentService(jdbcTemplate, registeredClientRepository);
}
/**
* 配置jwk源，使用非对称加密，公开用于检索匹配指定选择器的JWK的方法
*
* @return JWKSource
*/
@Bean
public JWKSource<SecurityContext> jwkSource() {
KeyPair keyPair = generateRsaKey();
RSAPublicKey publicKey = (RSAPublicKey) keyPair.getPublic();
RSAPrivateKey privateKey = (RSAPrivateKey) keyPair.getPrivate();
RSAKey rsaKey = new RSAKey.Builder(publicKey)
.privateKey(privateKey)
.keyID(UUID.randomUUID().toString())
.build();
JWKSet jwkSet = new JWKSet(rsaKey);
return new ImmutableJWKSet<>(jwkSet);
}
/**
* 生成rsa密钥对，提供给jwk
*
* @return 密钥对
*/
private static KeyPair generateRsaKey() {
KeyPair keyPair;
try {
KeyPairGenerator keyPairGenerator = KeyPairGenerator.getInstance("RSA");
keyPairGenerator.initialize(2048);
keyPair = keyPairGenerator.generateKeyPair();
} catch (Exception ex) {
throw new IllegalStateException(ex);
}
return keyPair;
}
/**
* 配置jwt解析器
*
* @param jwkSource jwk源
* @return JwtDecoder
*/
@Bean
public JwtDecoder jwtDecoder(JWKSource<SecurityContext> jwkSource) {
return OAuth2AuthorizationServerConfiguration.jwtDecoder(jwkSource);
}
/**
* 添加认证服务器配置，设置jwt签发者、默认端点请求地址等
*
* @return AuthorizationServerSettings
*/
@Bean
public AuthorizationServerSettings authorizationServerSettings() {
return AuthorizationServerSettings.builder()
/*
设置token签发地址(http(s)://{ip}:{port}/context-path, http(s)://domain.com/context-path)
如果需要通过ip访问这里就是ip，如果是有域名映射就填域名，通过什么方式访问该服务这里就填什么
*/
.issuer("http://192.168.120.33:8080")
.build();
}
}
到这里就完成了自定义的UserDetailsService
六、测试
1. 访问/oauth2/authorize接口
http://127.0.0.1:8080/oauth2/authorize?response_type=code&client_id=pkce-message-client&redirect_uri=http://127.0.0.1:8000/login/oauth2/code/messaging-client-oidc&scope=message.read&code_challenge=kfis_wJYpmCAPO-Ap1Sc6GXyz_x2dhhMsm9FOA7eEWY&code_challenge_method=S256

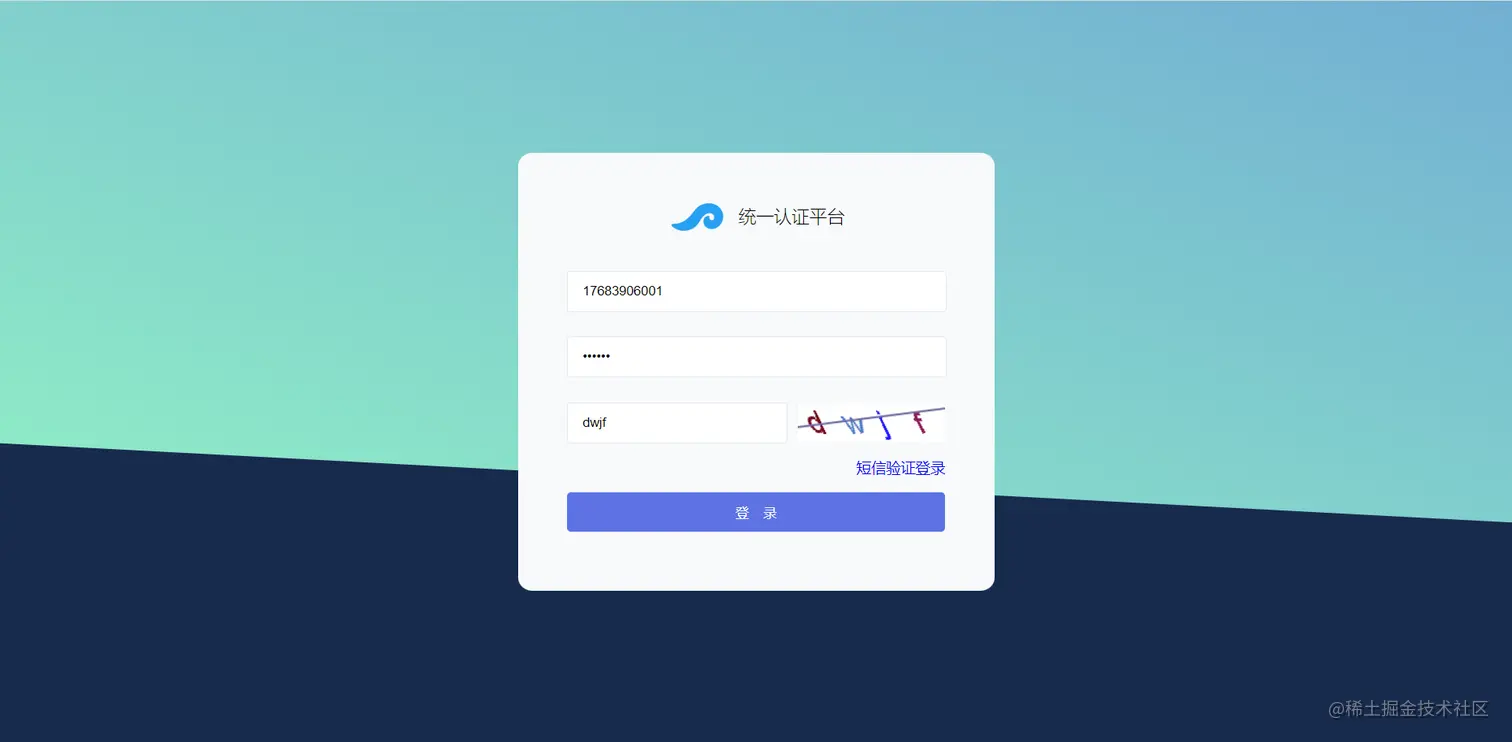

重定向至登录页面
2. 输入数据库中的手机号或者邮箱
3. 登录成功后携带code重定向至回调地址
七、框架在什么时候调用自定义的UserDetailsService

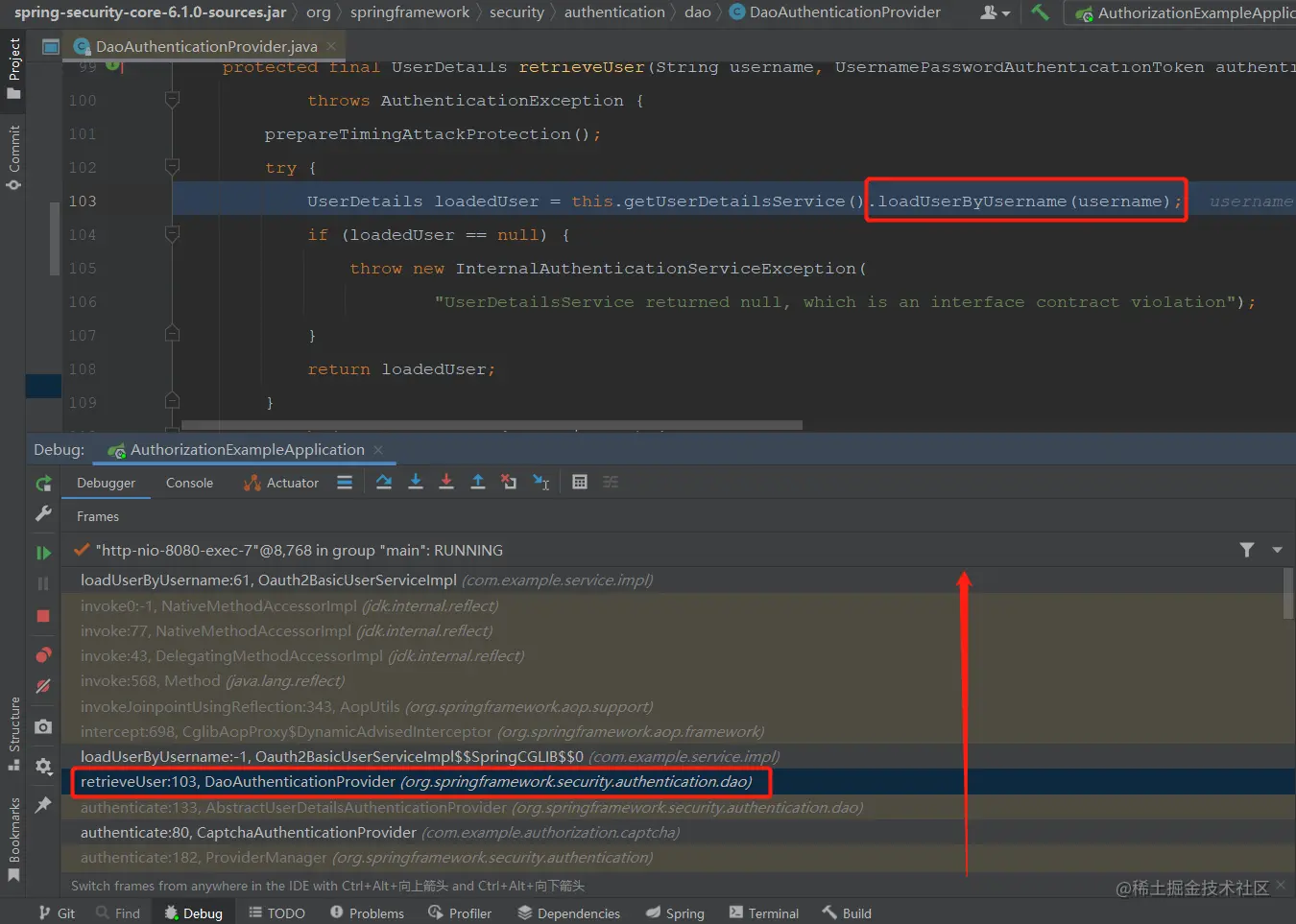

在loadUserByUsername方法中打一个断点，查看请求执行经过的类，发现是在DaoAuthenticationProvider中调用的loadUserByUsername方法；所以在上边为了符合框架的规则去实现UserDetails与UserDetailsService接口，这样注入ioc中后不需要别的配置即可生效。如果看过我之前文章的读者可能就比较熟悉了，这一快儿的东西在之前的文章中也有提到过，特别是在登录添加图形验证码一文中有过详细的说明。
代码已提交至码云authorization-example
如果有什么问题请在评论区指出，以防误人子弟
