LPG-Log-Collect
相关链接
整体架构
Loki是受Prometheus启发由Grafana Labs团队开源的水平可扩展，高度可用的多租户日志聚合系统。 开发语言: Google Go。它的设计具有很高的成本效益，并且易于操作。使用标签来作为索引，而不是对全文进行检索，也就是说，你通过这些标签既可以查询日志的内容也可以查询到监控的数据签，极大地降低了日志索引的存储。

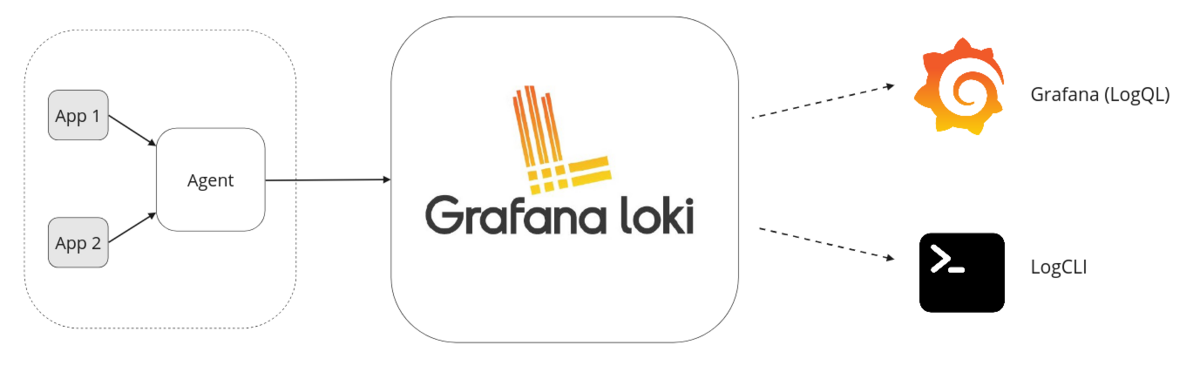

Loki系统架构十分简单，由以下3个部分组成 ：
-
Promtail 是代理，负责收集日志并将其发送给 loki 。
-
Loki 是主服务器，负责存储日志和处理查询 。
-
Grafana 用于 UI 展示。
只要在应用程序服务器上安装promtail来收集日志然后发送给Loki存储，就可以在Grafana UI界面通过添加Loki为数据源进行日志查询（如果Loki服务器性 能不够，可以部署多个Loki进行存储及查询）。
作为一个日志系统不光只有查询分析日志的能力，还能对日志进行监控和报警。
环境准备
| 名称 | IP | 服务 |
|---|---|---|
| 日志服务器 | 192.168.137.121 | Grafana + Loki |
| 应用服务器 | 192.168.137.132 | Spring Boot Service + Promtail |
| 应用服务器 | 192.168.137.132 | Nginx + Promtail |
| 应用 | 版本 |
|---|---|
| Loki | 3.5.1 |
| Promtail | 3.5.1 |
| Grafana | 12.0.1 |
| Grafana-Enterprise | 12.0.1 |
二进制安装
1. 下载二进制源码包
mkdir -p /root/grafana && cd /root/grafana
# 下载二进制包
wget https://github.com/grafana/loki/releases/download/v3.5.1/loki-linux-amd64.zip -O loki-linux-amd64.zip
wget https://github.com/grafana/loki/releases/download/v3.5.1/promtail-linux-amd64.zip -O promtail-linux-amd64.zip
wget https://dl.grafana.com/enterprise/release/grafana-enterprise-12.0.1.linux-amd64.tar.gz -O grafana-enterprise-12.0.1.linux-amd64.tar.gz
# 下载配置文件
wget https://raw.githubusercontent.com/grafana/loki/v3.5.1/cmd/loki/loki-local-config.yaml -O loki-local-config.yaml
wget https://raw.githubusercontent.com/grafana/loki/v3.5.1/clients/cmd/promtail/promtail-local-config.yaml -O promtail-local-config.yaml
2. Loki安装
- 安装运行
# 创建安装目录及数据目录
mkdir -p /usr/local/loki
mkdir -p /data/loki/{index,chunks,rules}
# 解压
unzip /root/grafana/loki-linux-amd64.zip -d /usr/local/loki
# 配置文件
cp /root/grafana/loki-local-config.yaml /usr/local/loki/loki-config.yaml
# 测试运行
cd /usr/local/loki
./loki-linux-amd64 -config.file=loki-local-config.yaml
# 官方仓库中 v3.5.1 的配置文件有问题，无法运行
- 配置文件
loki-config.yaml
auth_enabled: false
server:
http_listen_port: 3100
grpc_listen_port: 9096
log_level: debug
grpc_server_max_concurrent_streams: 1000
common:
instance_addr: 127.0.0.1
path_prefix: /tmp/loki
storage:
filesystem:
chunks_directory: /tmp/loki/chunks
rules_directory: /tmp/loki/rules
replication_factor: 1
ring:
kvstore:
store: inmemory
query_range:
results_cache:
cache:
embedded_cache:
enabled: true
max_size_mb: 100
limits_config:
metric_aggregation_enabled: true
enable_multi_variant_queries: true
schema_config:
configs:
- from: 2020-10-24
store: tsdb
object_store: filesystem
schema: v13
index:
prefix: index_
period: 24h
pattern_ingester:
enabled: true
metric_aggregation:
loki_address: localhost:3100
ruler:
alertmanager_url: http://localhost:9093
frontend:
encoding: protobuf
# By default, Loki will send anonymous, but uniquely-identifiable usage and configuration
# analytics to Grafana Labs. These statistics are sent to https://stats.grafana.org/
#
# Statistics help us better understand how Loki is used, and they show us performance
# levels for most users. This helps us prioritize features and documentation.
# For more information on what's sent, look at
# https://github.com/grafana/loki/blob/main/pkg/analytics/stats.go
# Refer to the buildReport method to see what goes into a report.
#
# If you would like to disable reporting, uncomment the following lines:
#analytics:
# reporting_enabled: false
- 启停脚本
# 启动脚本
cat > startup.sh << 'EOF'
#!/bin/bash
nohup ./loki-linux-amd64 -config.file=./loki-config.yaml >./loki.log 2>&1 &
echo "$!" > pid
EOF
# 停止脚本
cat > shutdown.sh << 'EOF'
#!/bin/bash
kill -9 `cat pid`
echo "关闭成功!"
EOF
# 脚本添加执行权限
chmod +x startup.sh shutdown.sh

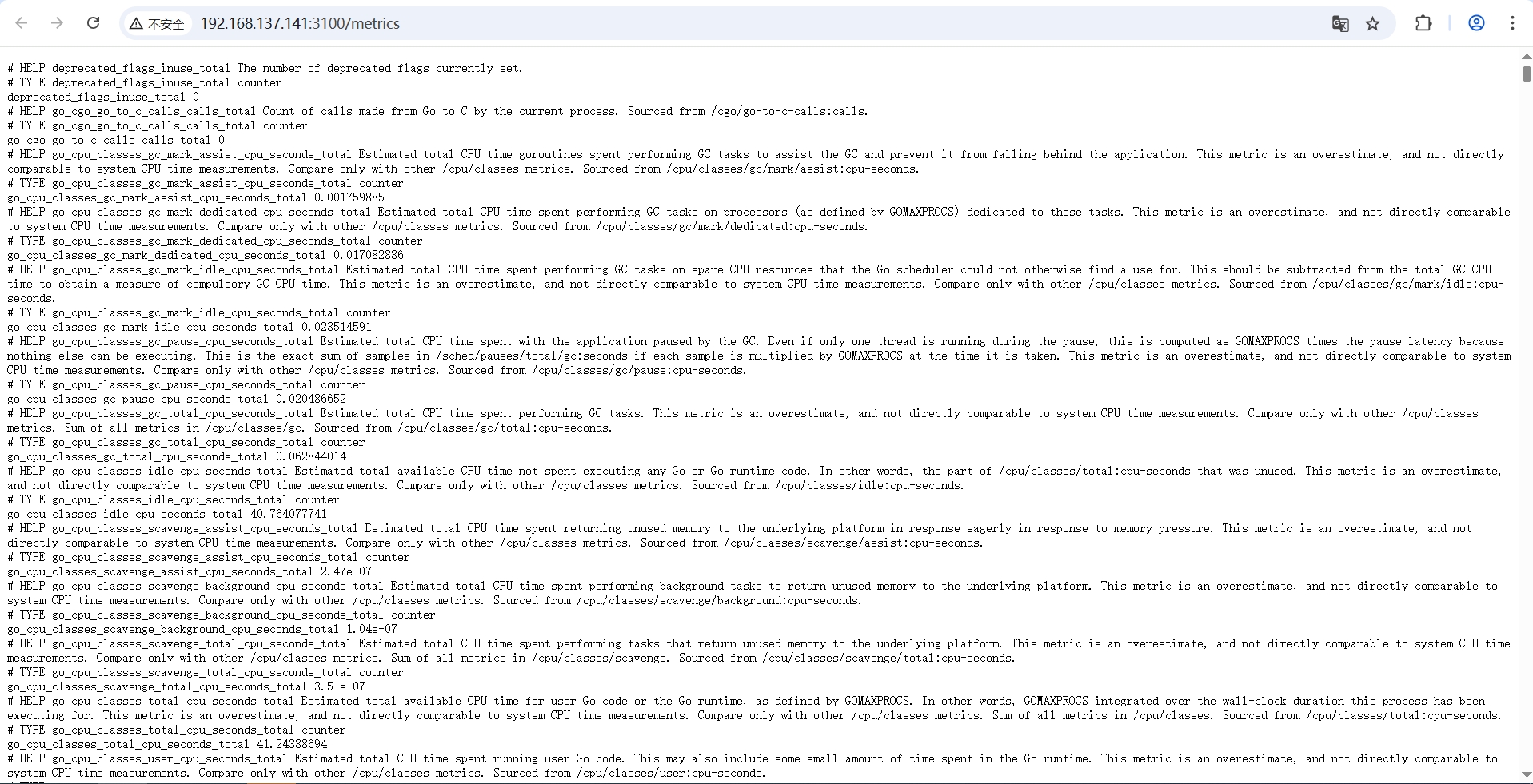

- 可以用浏览器打开Loki指标页面
3. Promtail安装
- 安装运行
# 创建安装目录及数据目录
mkdir -p /usr/local/promtail
mkdir -p /data/promtail/
# 解压
unzip /root/grafana/promtail-linux-amd64.zip -d /usr/local/promtail
# 配置文件
cp /root/grafana/promtail-local-config.yaml /usr/local/promtail/promtail-config.yaml
# 运行
cd /usr/local/promtail
./promtail-linux-amd64 -config.file=promtail-config.yaml
- 配置文件
promtail-config.yaml
server:
http_listen_port: 9080
grpc_listen_port: 0
positions:
filename: /tmp/positions.yaml
clients:
- url: http://localhost:3100/loki/api/v1/push
scrape_configs:
- job_name: system
static_configs:
- targets:
- localhost
labels:
job: varlogs
__path__: /var/log/*log
stream: stdout
- 启停脚本
# 启动脚本
cat > startup.sh << 'EOF'
#!/bin/bash
nohup ./promtail-linux-amd64 -config.file=promtail-config.yaml >./promtail.log 2>&1 &
echo "$!" > pid
EOF
# 停止脚本
cat > shutdown.sh << 'EOF'
#!/bin/bash
kill -9 `cat pid`
echo "关闭成功!"
EOF
# 脚本添加执行权限
chmod +x startup.sh shutdown.sh
4. Grafana安装
# 创建安装 目录及数据目录
mkdir -p /usr/local/grafana
mkdir -p /data/grafana/
# 解压
tar -zxvf /root/grafana/grafana-enterprise-12.0.1.linux-amd64.tar.gz -C /usr/local/grafana
# 运行
cd /usr/local/grafana/grafana-v12.0.1
./bin/grafana server --config=./conf/defaults.ini --pidfile=./grafana.pid
-
配置文件
conf/default.ini -
启停脚本
# 启动脚本
cat > startup.sh << 'EOF'
#!/bin/bash
nohup ./bin/grafana server --config=./conf/defaults.ini --pidfile=./grafana.pid >./grafana.log 2>&1 &
echo "$!" > pid
EOF
# 停止脚本
cat > shutdown.sh << 'EOF'
#!/bin/bash
kill -9 `cat pid`
echo "关闭成功!"
EOF
# 脚本添加执行权限
chmod +x startup.sh shutdown.sh

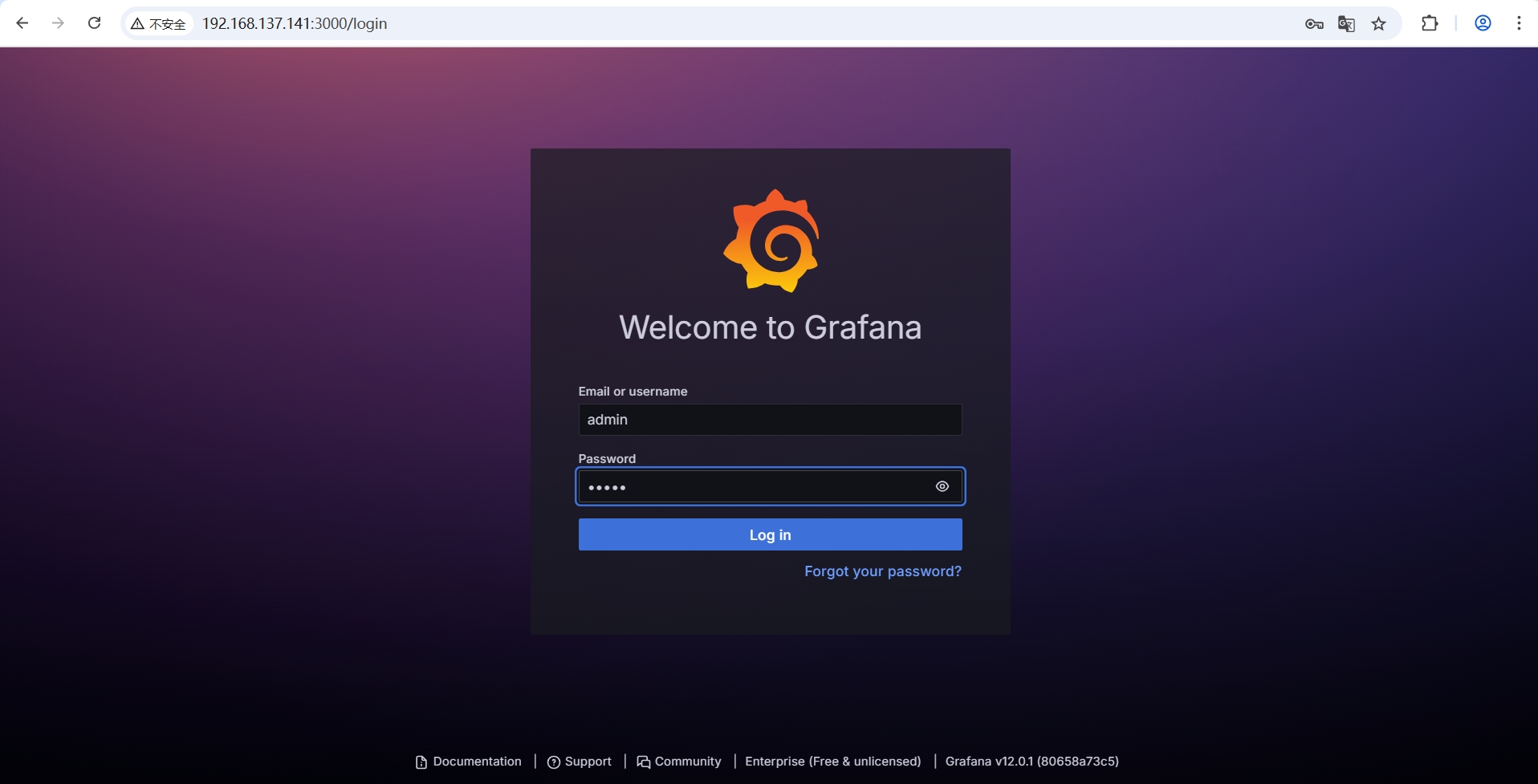

- 可以用浏览器打开Grafana指标页面
- http://192.168.137.141:3000
- admin / admin
5. 测试
-

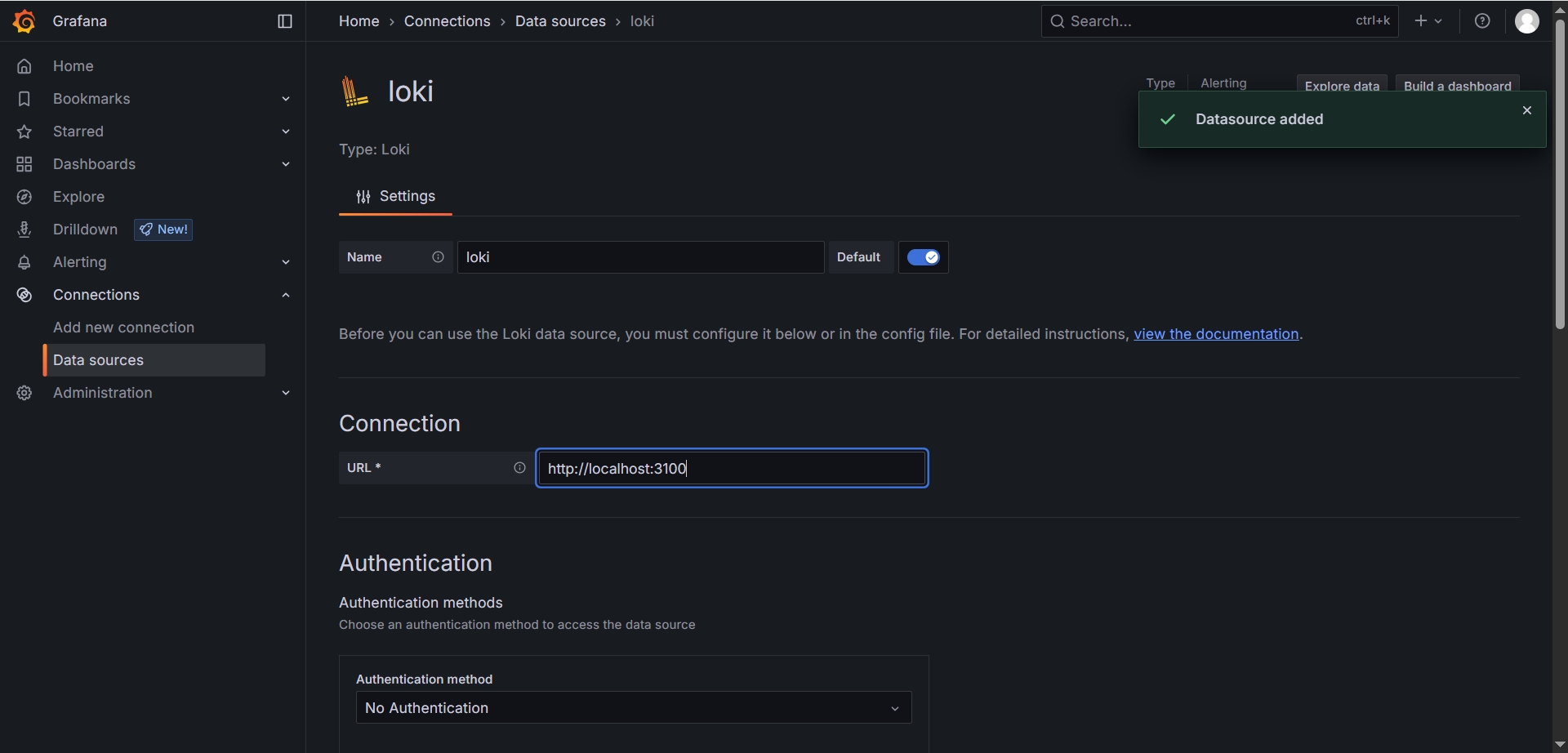

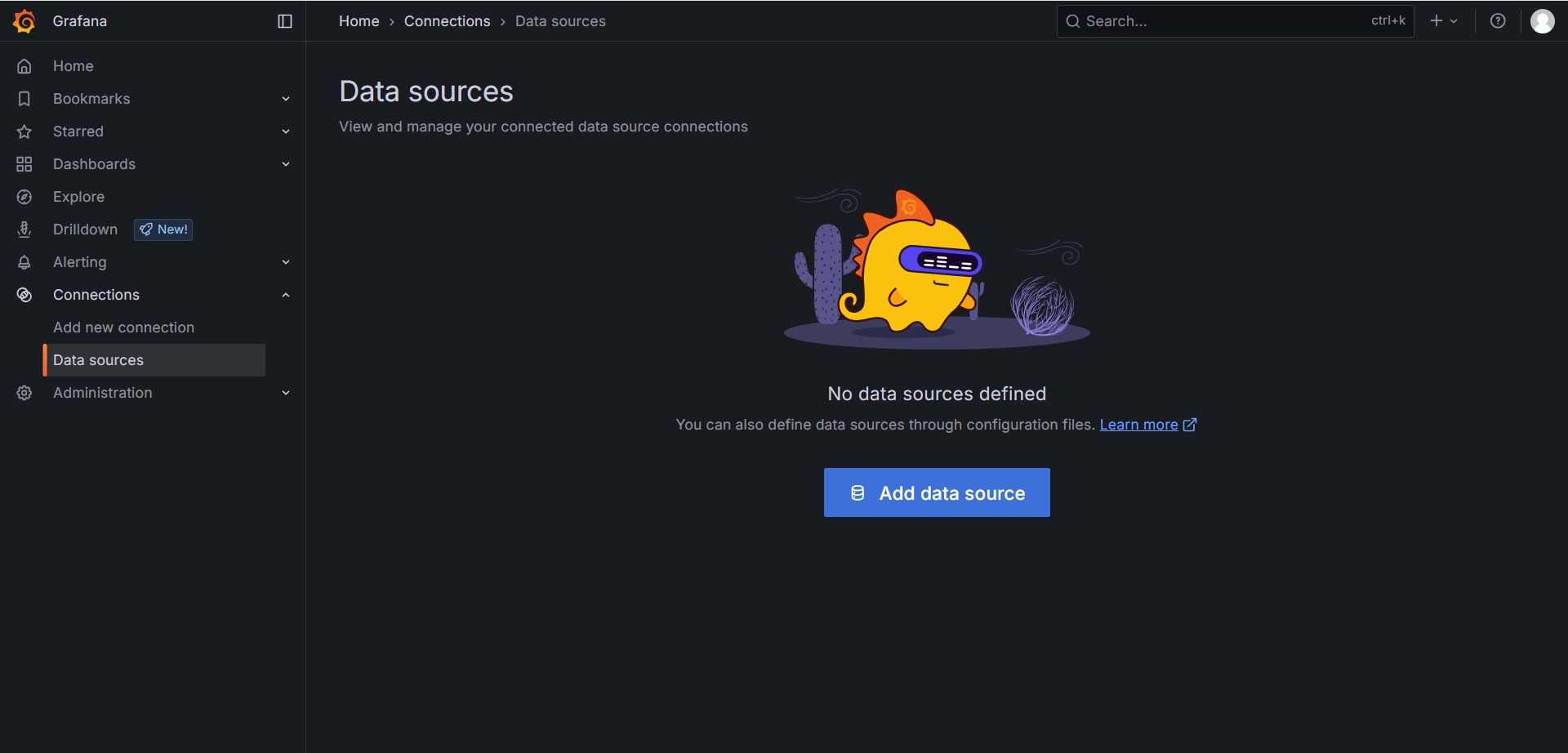

添加 Loki 数据源，配置Loki的http地址
-

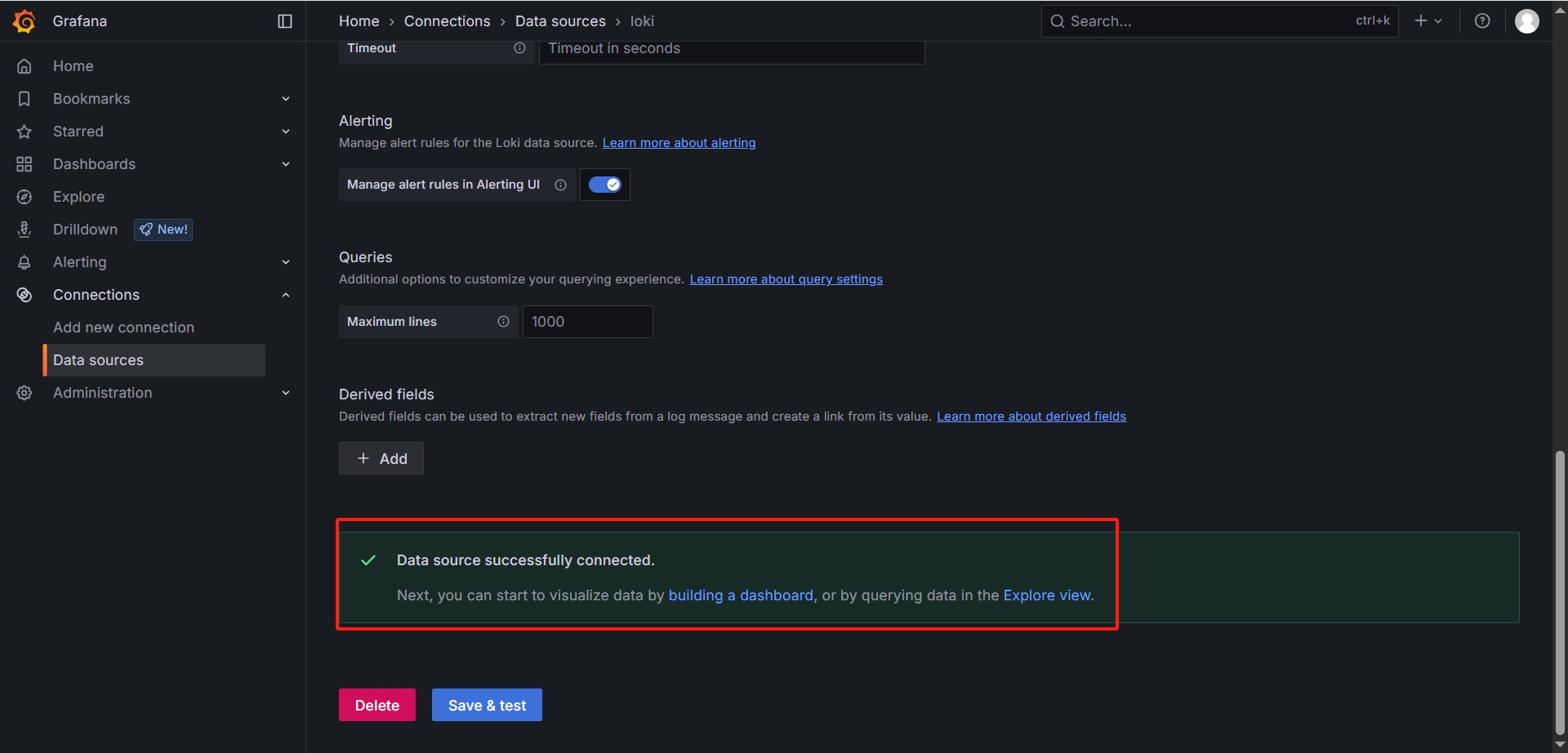

点击
Save & test测试连接，按钮上方弹出连接成功提示
-

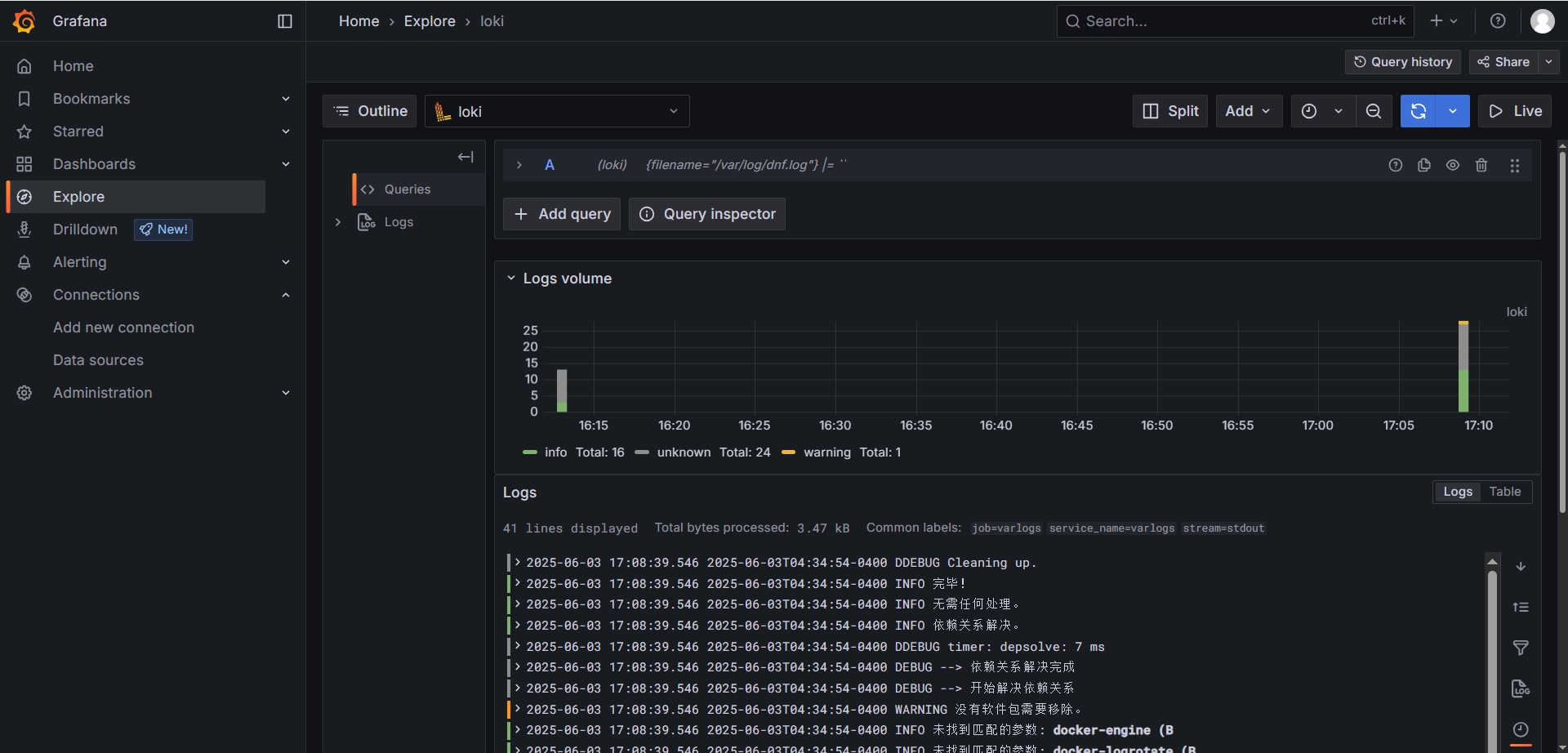

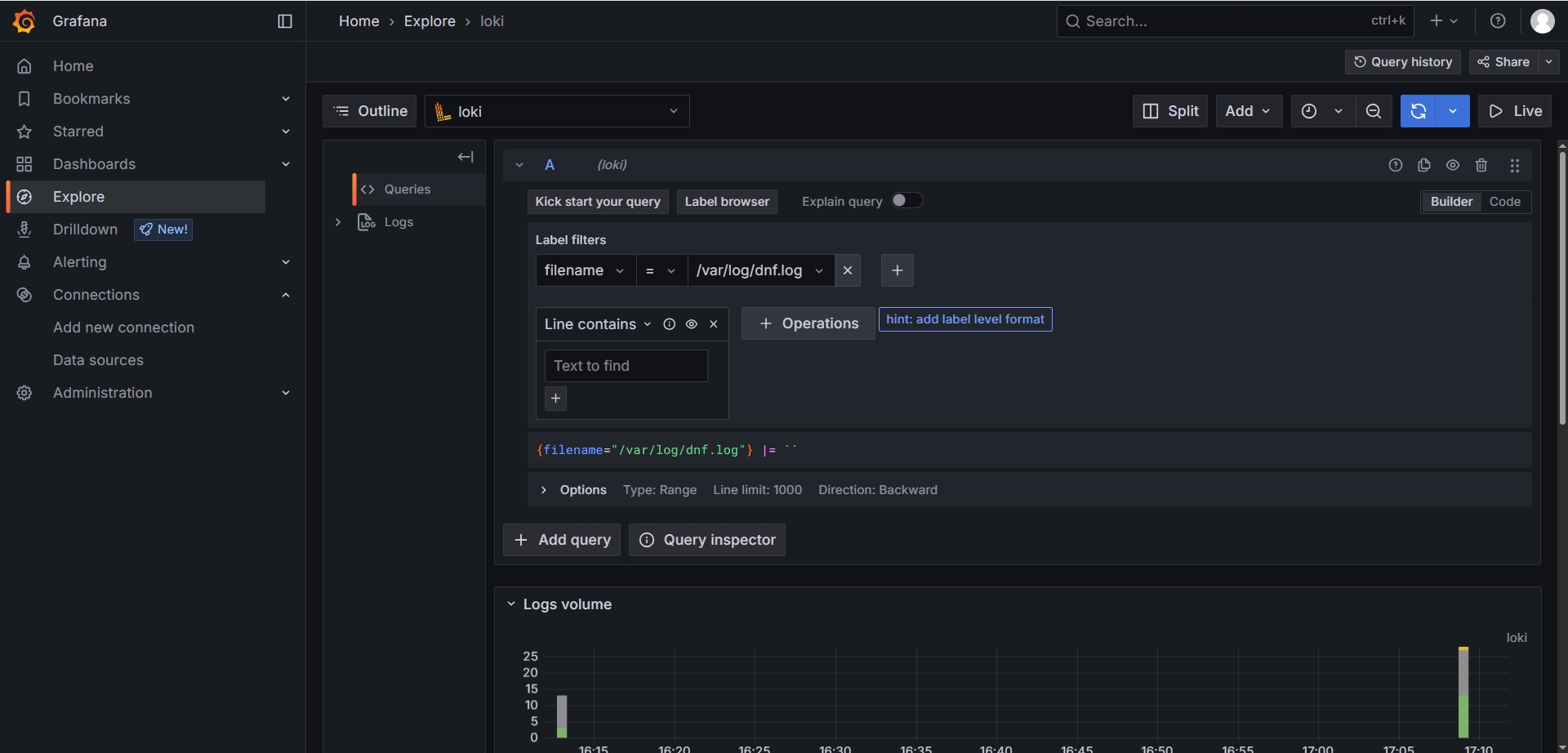

打开Explore，测试数据查询
Docker安装
1. 拉取Docker镜像
# 拉取镜像
docker pull grafana/loki:3.5.1
docker pull grafana/promtail:3.5.1
docker pull grafana/grafana:12.0.1
docker pull grafana/grafana-enterprise:12.0.1
# 导出镜像
docker save grafana/loki:3.5.1 -o ./grafana_loki_3.5.1.tar
docker save grafana/promtail:3.5.1 -o ./grafana_promtail_3.5.1.tar
docker save grafana/grafana:12.0.1 -o ./grafana_grafana_12.0.1.tar
docker save grafana/grafana-enterprise:12.0.1 -o ./grafana_grafana-enterprise_12.0.1.tar
# 加载镜像
docker load -i ./grafana_loki_3.5.1.tar
docker load -i ./grafana_promtail_3.5.1.tar
docker load -i ./grafana_grafana_12.0.1.tar
docker load -i ./grafana_grafana-enterprise_12.0.1.tar
2. 下载默认配置文件
# 下载配置文件
mkdir -p /root/grafana && cd /root/grafana
wget https://raw.githubusercontent.com/grafana/loki/v3.5.1/cmd/loki/loki-local-config.yaml -O loki-local-config.yaml
wget https://raw.githubusercontent.com/grafana/loki/v3.5.1/clients/cmd/promtail/promtail-docker-config.yaml -O promtail-docker-config.yaml
wget https://raw.githubusercontent.com/grafana/loki/v3.5.1/production/docker-compose.yaml -O docker-compose.yaml
# 复制配置文件到目标路径
mkdir -p /etc/{loki,promtail,grafana}
cp /root/grafana/loki-local-config.yaml /etc/loki/local-config.yaml
cp /root/grafana/promtail-docker-config.yaml /etc/promtail/config.yaml
3. 准备配置文件
- Loki配置文件
/etc/loki/local-config.yaml
auth_enabled: false
server:
http_listen_port: 3100
grpc_listen_port: 9096
log_level: debug
grpc_server_max_concurrent_streams: 1000
common:
instance_addr: 127.0.0.1
path_prefix: /tmp/loki
storage:
filesystem:
chunks_directory: /tmp/loki/chunks
rules_directory: /tmp/loki/rules
replication_factor: 1
ring:
kvstore:
store: inmemory
query_range:
results_cache:
cache:
embedded_cache:
enabled: true
max_size_mb: 100
limits_config:
metric_aggregation_enabled: true
enable_multi_variant_queries: true
schema_config:
configs:
- from: 2020-10-24
store: tsdb
object_store: filesystem
schema: v13
index:
prefix: index_
period: 24h
pattern_ingester:
enabled: true
metric_aggregation:
loki_address: localhost:3100
ruler:
alertmanager_url: http://localhost:9093
frontend:
encoding: protobuf
# By default, Loki will send anonymous, but uniquely-identifiable usage and configuration
# analytics to Grafana Labs. These statistics are sent to https://stats.grafana.org/
#
# Statistics help us better understand how Loki is used, and they show us performance
# levels for most users. This helps us prioritize features and documentation.
# For more information on what's sent, look at
# https://github.com/grafana/loki/blob/main/pkg/analytics/stats.go
# Refer to the buildReport method to see what goes into a report.
#
# If you would like to disable reporting, uncomment the following lines:
#analytics:
# reporting_enabled: false
- Promtail配置文件
/etc/promtail/config.yaml
server:
http_listen_port: 9080
grpc_listen_port: 0
positions:
filename: /tmp/positions.yaml
clients:
- url: http://loki:3100/loki/api/v1/push
scrape_configs:
- job_name: system
static_configs:
- targets:
- localhost
labels:
job: varlogs
__path__: /var/log/*log
4. Docker Compose文件
version: "3.3"
networks:
loki:
services:
loki:
image: grafana/loki:3.5.1
ports:
- "3100:3100"
volumes:
- /etc/loki/local-config.yaml:/etc/loki/local-config.yaml
command: -config.file=/etc/loki/local-config.yaml
networks:
- loki
promtail:
image: grafana/promtail:3.5.1
volumes:
- /var/log:/var/log
- /etc/promtail/config.yml:/etc/promtail/config.yml
command: -config.file=/etc/promtail/config.yml
networks:
- loki
grafana:
environment:
- GF_PATHS_PROVISIONING=/etc/grafana/provisioning
- GF_AUTH_ANONYMOUS_ENABLED=true
- GF_AUTH_ANONYMOUS_ORG_ROLE=Admin
- GF_FEATURE_TOGGLES_ENABLE=alertingSimplifiedRouting,alertingQueryAndExpressionsStepMode
entrypoint:
- sh
- -euc
- |
mkdir -p /etc/grafana/provisioning/datasources
cat <<EOF > /etc/grafana/provisioning/datasources/ds.yaml
apiVersion: 1
datasources:
- name: Loki
type: loki
access: proxy
orgId: 1
url: http://loki:3100
basicAuth: false
isDefault: true
version: 1
editable: false
EOF
/run.sh
image: grafana/grafana:12.0.1
ports:
- "3000:3000"
networks:
- loki
5. 启动容器
# 启动
docker compose -f docker-compose.yaml up -d
# 停止
docker compose -f docker-compose.yaml down

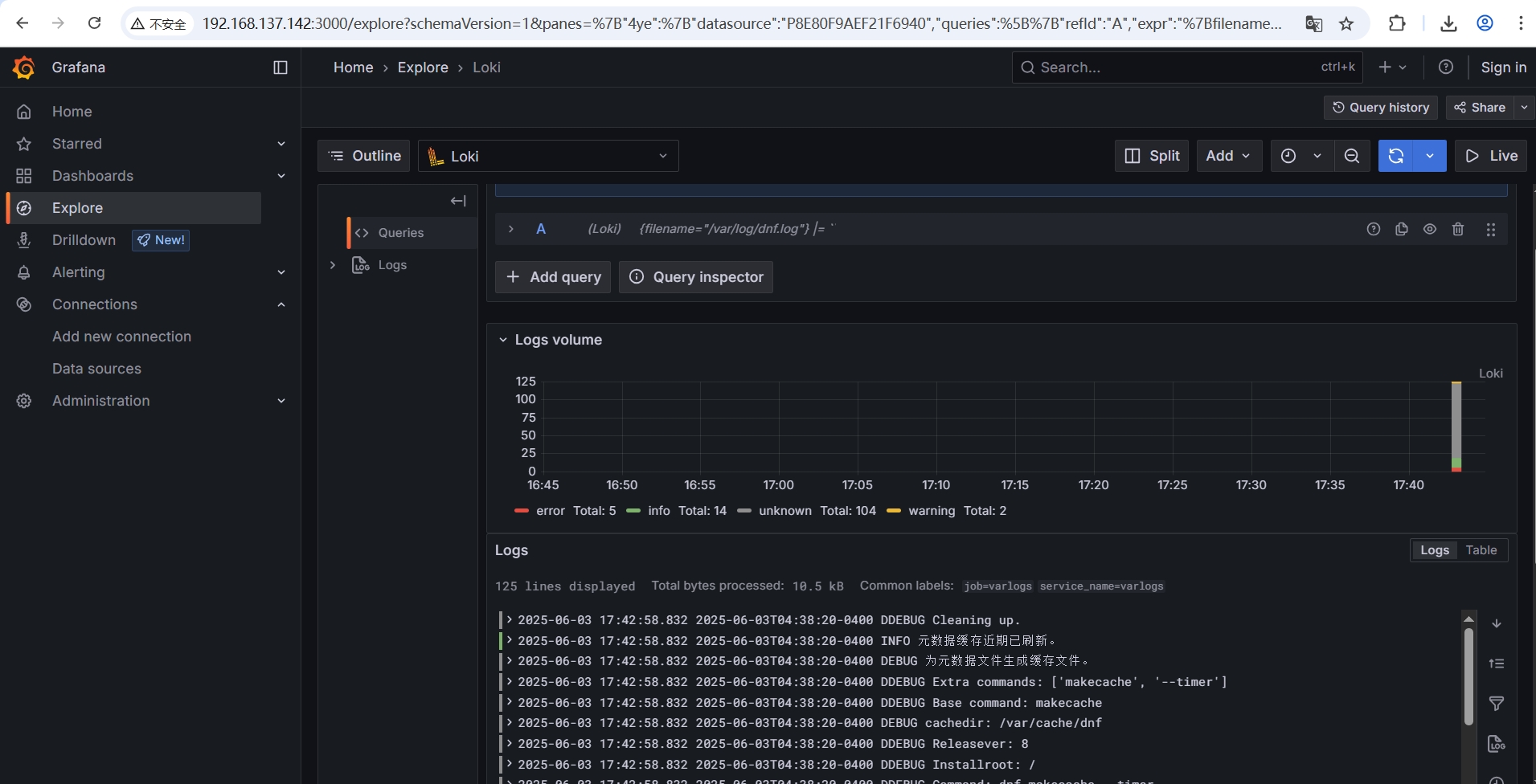

6. 测试
- 查看Loki监控指标

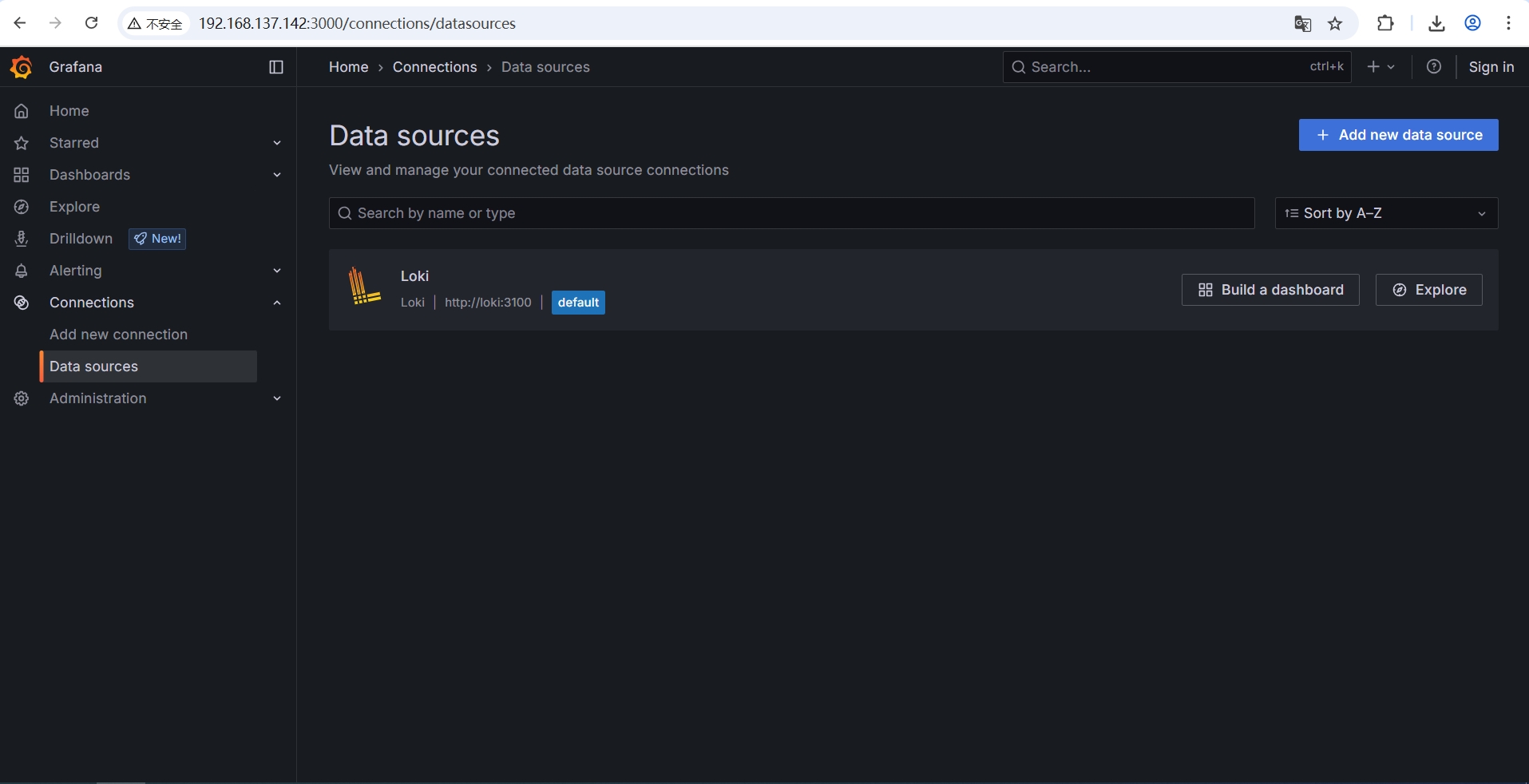

- 查看Grafana数据源
- http://192.168.137.142:3000/
- admin / admin
Kubernetes安装
- Loki使用示例：针对部署在K8s中的Java应用的日志捕获Promtail配置示例
- Grafana Kubernetes安装
- Loki Helm安装
- Promtail Kubernetes daemonSet 安装
K8s安装Loki + Promtail + Grafana 所需资源较多(对于一个3节点的K8s集群，需要启动11个Loki相关Pod)，对于低负载的场景，建议直接使用Docker部署Loki和Grafana，仅将Promtail部署到K8s Daemonset。
1. Kubernetes安装Loki
由于微服务形式(16节点或服务)和自动伸缩式（12个节点或服务）的所需Loki节点较多，此处采用单片模式
单副本部署配置文件 loki-values.yaml
- Loki (1 replica)
- Loki Canary (1 DaemonSet)
- Loki Gateway (1 NGINX replica)
- Loki Chunk and Result Cache (1 DaemonSet)
- Minio (optional, if
minio.enabled=true)
loki:
commonConfig:
replication_factor: 1
schemaConfig:
configs:
- from: "2024-04-01"
store: tsdb
object_store: s3
schema: v13
index:
prefix: loki_index_
period: 24h
pattern_ingester:
enabled: true
limits_config:
allow_structured_metadata: true
volume_enabled: true
ruler:
enable_api: true
minio:
enabled: true
deploymentMode: SingleBinary
singleBinary:
replicas: 1
# Zero out replica counts of other deployment modes
backend:
replicas: 0
read:
replicas: 0
write:
replicas: 0
ingester:
replicas: 0
querier:
replicas: 0
queryFrontend:
replicas: 0
queryScheduler:
replicas: 0
distributor:
replicas: 0
compactor:
replicas: 0
indexGateway:
replicas: 0
bloomCompactor:
replicas: 0
bloomGateway:
replicas: 0
多副本部署配置文件 loki-values.yaml
- Loki (3 replicas)
- Loki Canary (1 DaemonSet)
- Loki Gateway (1 NGINX replica)
- Loki Chunk and Result Cache (1 DaemonSet)
- Minio (optional, if
minio.enabled=true)
loki:
commonConfig:
replication_factor: 3
schemaConfig:
configs:
- from: "2024-04-01"
store: tsdb
object_store: s3
schema: v13
index:
prefix: loki_index_
period: 24h
pattern_ingester:
enabled: true
limits_config:
allow_structured_metadata: true
volume_enabled: true
ruler:
enable_api: true
minio:
enabled: true
# 修改 memcached 的内存，避免因内存不足导致启动失败（values.yaml中默认配置为8192）
chunksCache:
allocatedMemory: 1024
deploymentMode: SingleBinary
singleBinary:
replicas: 3
# Zero out replica counts of other deployment modes
backend:
replicas: 0
read:
replicas: 0
write:
replicas: 0
ingester:
replicas: 0
querier:
replicas: 0
queryFrontend:
replicas: 0
queryScheduler:
replicas: 0
distributor:
replicas: 0
compactor:
replicas: 0
indexGateway:
replicas: 0
bloomCompactor:
replicas: 0
bloomGateway:
replicas: 0
添加Grafana Chart到Helm
# 查看helm版本
helm version
# 如果添加仓库失败可以添加代理
export http_proxy=http://192.168.137.1:4780
export https_proxy=http://192.168.137.1:4780
# 添加chart仓库
helm repo add grafana https://grafana.github.io/helm-charts
# 更新chart仓库
helm repo update
# 查看添加完成后的仓库
helm repo list
# 查询loki的chart
helm search repo loki
# 新建文件夹用于保存chart
mkdir loki-chart && cd loki-chart
# 拉取chart
helm pull grafana/loki
# 拉取较慢，可以直接从github下载
# wget https://github.com/grafana/helm-charts/releases/download/helm-loki-6.30.1/loki-6.30.1.tgz
# wget https://github.com/minio/minio/blob/master/helm-releases/minio-5.4.0.tgz
# 此时会有一个压缩包，默认下载的是最新版本，可能与Grafana版本不兼容，需要去github确认
tar -zxvf loki-6.30.1.tgz -C ~/
# 进入到解压后的文件夹
cd ~/loki
# 查看默认的配置文件
vim values.yaml
安装Loki
由于默认的配置文件属性较多，这里安装时使用 loki-values.yaml 来覆盖部分默认的配置项，其余的属性依然是默认配置文件 values.yaml 中的
注意
如果启用了minio，则会从 https://github.com/minio/minio/blob/master/helm/minio/values.yaml 仓库加载minio的配置
# 安装时需要从docker仓库拉取镜像，可以提前准备好
docker pull grafana/loki:3.5.0
docker pull grafana/loki-canary:3.5.0
docker pull grafana/enterprise-logs:3.5.1
docker pull grafana/loki-helm-test:ewelch-distributed-helm-chart-17db5ee
docker pull nginxinc/nginx-unprivileged:1.28-alpine
docker pull quay.io/minio/minio:RELEASE.2024-12-18T13-15-44Z
docker pull memcached:1.6.38-alpine
docker pull prom/memcached-exporter:v0.15.2
docker pull kiwigrid/k8s-sidecar:1.30.3
# 拉取镜像较慢，可以设置本地代理
export HTTP_PROXY=http://192.168.137.1:4780
export HTTPS_PROXY=http://192.168.137.1:4780
# 安装Loki，在 loki-values.yaml 所在目录执行，从服务器下载 loki-6.30.1.tgz 安装包
# helm install loki grafana/loki --create-namespace --namespace loki -f loki-values.yaml
# 安装Loki，在 loki-6.30.1.tgz 解压目录执行，需要将 loki-values.yaml 复制到改目录
helm install loki . --create-namespace --namespace loki -f loki-values.yaml
# 升级Loki
helm upgrade loki grafana/loki -f loki-values.yaml
# 查看Helm部署的资源
helm ls --namespace loki
检查Loki状态
# 查看Loki pod
kubectl get pods -n loki -o wide
# 查看服务端口信息
kubectl get svc -n loki
# 查看节点Pending原因
kubectl describe pod loki-0 -n loki
kubectl describe pod loki-minio-0 -n loki
kubectl describe pod loki-chunks-cache-0 -n loki
# 卸载Loki
helm uninstall loki --namespace loki
2. 将Promtail安装为Kubernetes Daemonset
- 什么是Kubernetes DaemonSet，如何使用？ 将Promtail安装为Kubernetes Daemonset将会在K8s集群的每个节点上部署 Promtail
这个DaemonSet会收集K8s集群中所有容器的日志，这是单租户模型的最佳解决方案。将其中的 {YOUR_LOKI_ENDPOINT} 替换为上面部署的Loki端点地址
--- # Daemonset.yaml
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: promtail-daemonset
spec:
selector:
matchLabels:
name: promtail
template:
metadata:
labels:
name: promtail
spec:
serviceAccount: promtail-serviceaccount
containers:
- name: promtail-container
image: grafana/promtail
args:
- -config.file=/etc/promtail/promtail.yaml
env:
- name: 'HOSTNAME' # needed when using kubernetes_sd_configs
valueFrom:
fieldRef:
fieldPath: 'spec.nodeName'
volumeMounts:
- name: logs
mountPath: /var/log
- name: promtail-config
mountPath: /etc/promtail
- mountPath: /var/lib/docker/containers
name: varlibdockercontainers
readOnly: true
volumes:
- name: logs
hostPath:
path: /var/log
- name: varlibdockercontainers
hostPath:
path: /var/lib/docker/containers
- name: promtail-config
configMap:
name: promtail-config
--- # configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: promtail-config
data:
promtail.yaml: |
server:
http_listen_port: 9080
grpc_listen_port: 0
clients:
- url: https://{YOUR_LOKI_ENDPOINT}/loki/api/v1/push
positions:
filename: /tmp/positions.yaml
target_config:
sync_period: 10s
scrape_configs:
- job_name: pod-logs
kubernetes_sd_configs:
- role: pod
pipeline_stages:
- docker: {}
relabel_configs:
- source_labels:
- __meta_kubernetes_pod_node_name
target_label: __host__
- action: labelmap
regex: __meta_kubernetes_pod_label_(.+)
- action: replace
replacement: $1
separator: /
source_labels:
- __meta_kubernetes_namespace
- __meta_kubernetes_pod_name
target_label: job
- action: replace
source_labels:
- __meta_kubernetes_namespace
target_label: namespace
- action: replace
source_labels:
- __meta_kubernetes_pod_name
target_label: pod
- action: replace
source_labels:
- __meta_kubernetes_pod_container_name
target_label: container
- replacement: /var/log/pods/*$1/$2/*.log # $1=pod_uid, $2=container_name
separator: /
source_labels:
- __meta_kubernetes_pod_uid
- __meta_kubernetes_pod_container_name
target_label: __path__
--- # Clusterrole.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: promtail-clusterrole
rules:
- apiGroups: [""]
resources:
- nodes
- services
- pods
verbs:
- get
- watch
- list
--- # ServiceAccount.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
name: promtail-serviceaccount
--- # Rolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: promtail-clusterrolebinding
subjects:
- kind: ServiceAccount
name: promtail-serviceaccount
namespace: default
roleRef:
kind: ClusterRole
name: promtail-clusterrole
apiGroup: rbac.authorization.k8s.io
部署和查询Daemonset
# 部署 Promtail DaemonSet
kubectl apply -f promtail-daemonset.yaml
# 查询出 Pod 以及它们部署到的节点
kubectl get pods -l name=promtail -o wide
# 查询DaemonSet 的信息
kubectl get daemonset
# 删除Daemonset
kubectl delete daemonset/promtail-daemonset
# 查看Daemonset状态及异常原因
kubectl describe pod promtail-daemonset-8d5gv
# 查看配置文件
kubectl exec -it promtail-daemonset-8d5gv -n default -- cat /etc/promtail/promtail.yaml
3. Kubernetes安装Grafana
- 创建命名空间
# 创建命名空间
kubectl create namespace grafana
# 查看
kubectl get namespace grafana
- 创建部署配置文件
grafana.yaml
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: grafana-pvc
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: grafana
name: grafana
spec:
selector:
matchLabels:
app: grafana
template:
metadata:
labels:
app: grafana
spec:
securityContext:
fsGroup: 472
supplementalGroups:
- 0
containers:
- name: grafana
image: grafana/grafana:latest
imagePullPolicy: IfNotPresent
ports:
- containerPort: 3000
name: http-grafana
protocol: TCP
readinessProbe:
failureThreshold: 3
httpGet:
path: /robots.txt
port: 3000
scheme: HTTP
initialDelaySeconds: 10
periodSeconds: 30
successThreshold: 1
timeoutSeconds: 2
livenessProbe:
failureThreshold: 3
initialDelaySeconds: 30
periodSeconds: 10
successThreshold: 1
tcpSocket:
port: 3000
timeoutSeconds: 1
resources:
requests:
cpu: 250m
memory: 750Mi
volumeMounts:
- mountPath: /var/lib/grafana
name: grafana-pv
volumes:
- name: grafana-pv
persistentVolumeClaim:
claimName: grafana-pvc
---
apiVersion: v1
kind: Service
metadata:
name: grafana
spec:
ports:
- port: 3000
protocol: TCP
targetPort: http-grafana
selector:
app: grafana
sessionAffinity: None
type: LoadBalancer
- 部署服务，创建PVC Deployment Services
| Object | Description |
|---|---|
| Persistent Volume Claim (PVC) | This object stores the data. |
| Service | This object provides network access to the Pod defined in the deployment. |
| Deployment | This object is responsible for creating the pods, ensuring they stay up to date, and managing Replicaset and Rolling updates. |
# 部署
kubectl apply -f grafana.yaml --namespace=grafana
# 查看
kubectl get pvc --namespace=grafana -o wide
kubectl get deployments --namespace=grafana -o wide
kubectl get svc --namespace=grafana -o wide
# 查看服务部署情况，记录 EXTERNAL-IP，即Grafana的访问地址
kubectl get all --namespace=grafana
# 如果不想使用 EXTERNAL-IP ，执行下面命令将端口转发到节点端口上
kubectl port-forward service/grafana 3000:3000 --namespace=grafana
项目日志收集实操
- Docker Compose 部署 Loki + Grafana
- K8s DaemonSet 部署 Promtail
- K8s 部署Spring Boot应用
- 本地部署 Spring Boot Jar包
- 本地部署 Nginx
- Promtail 收集本地日志

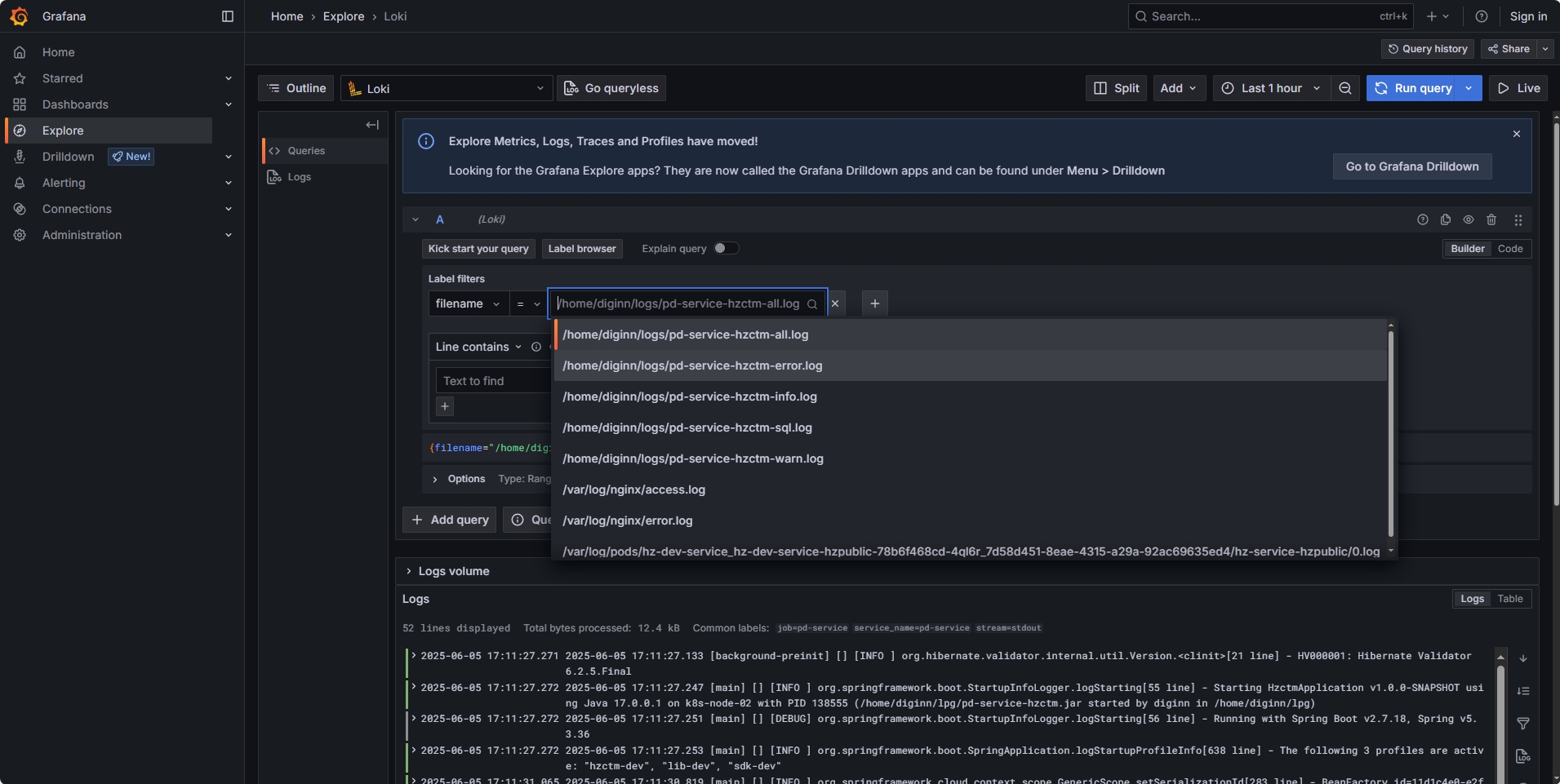

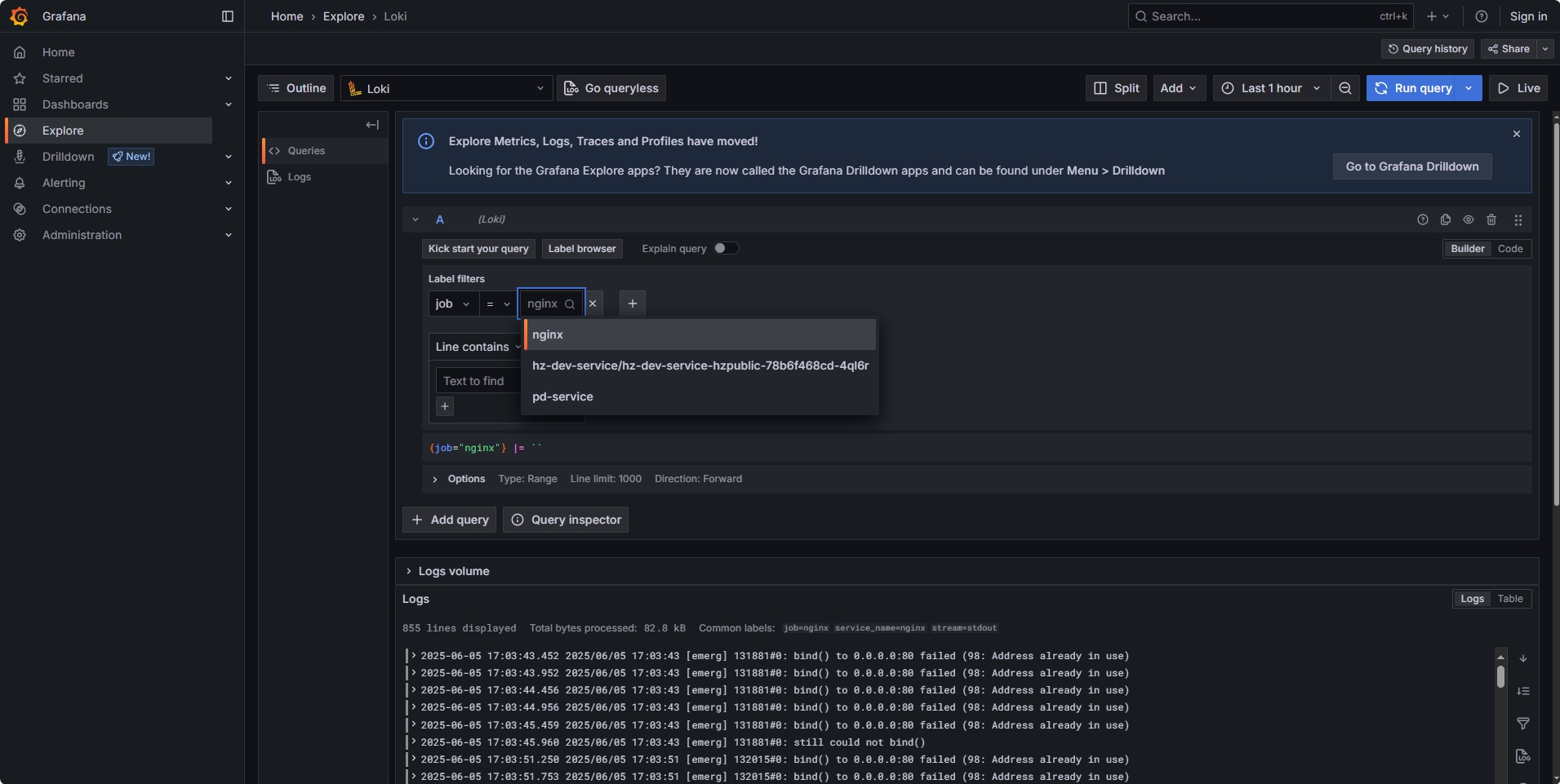

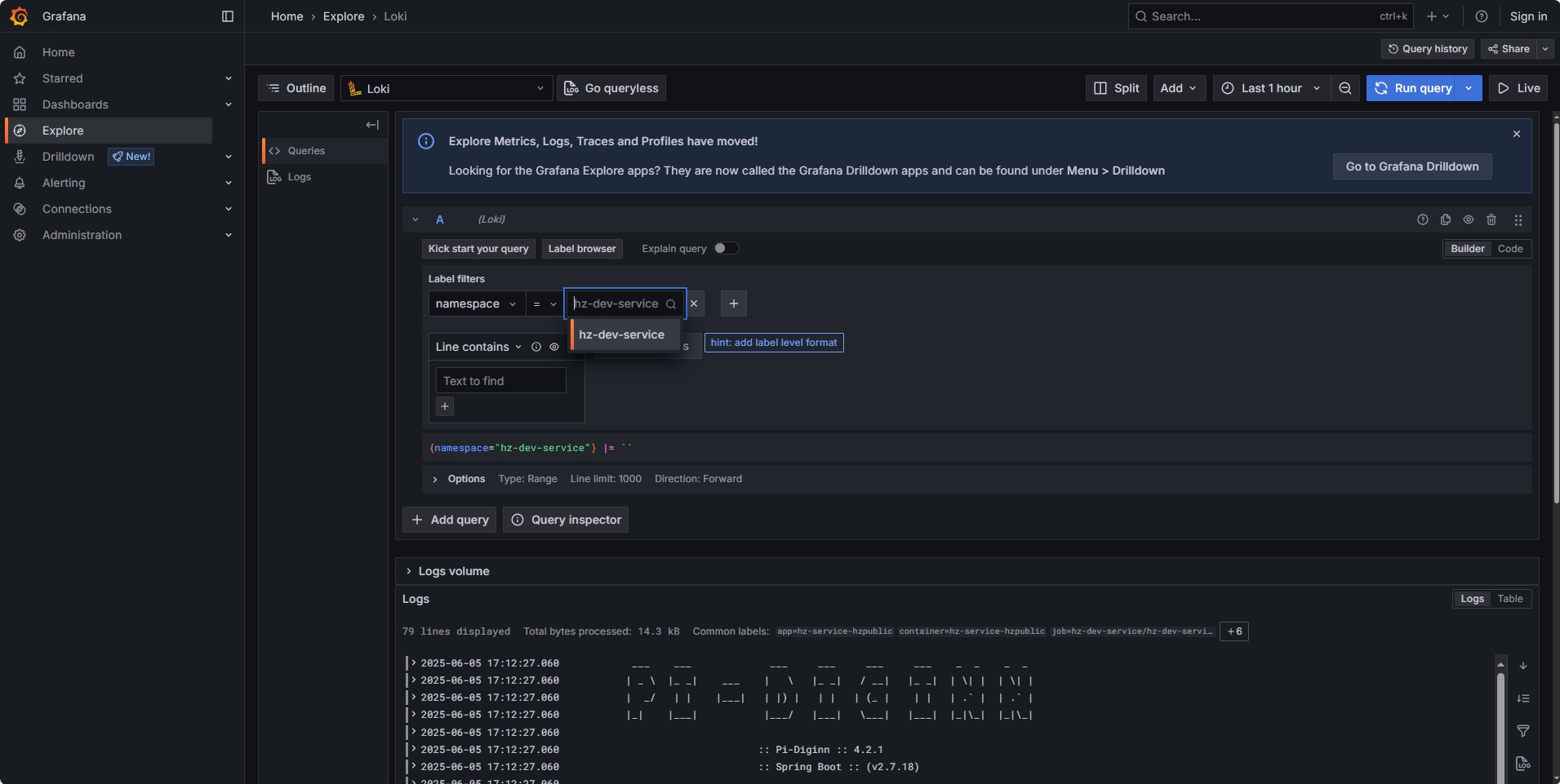

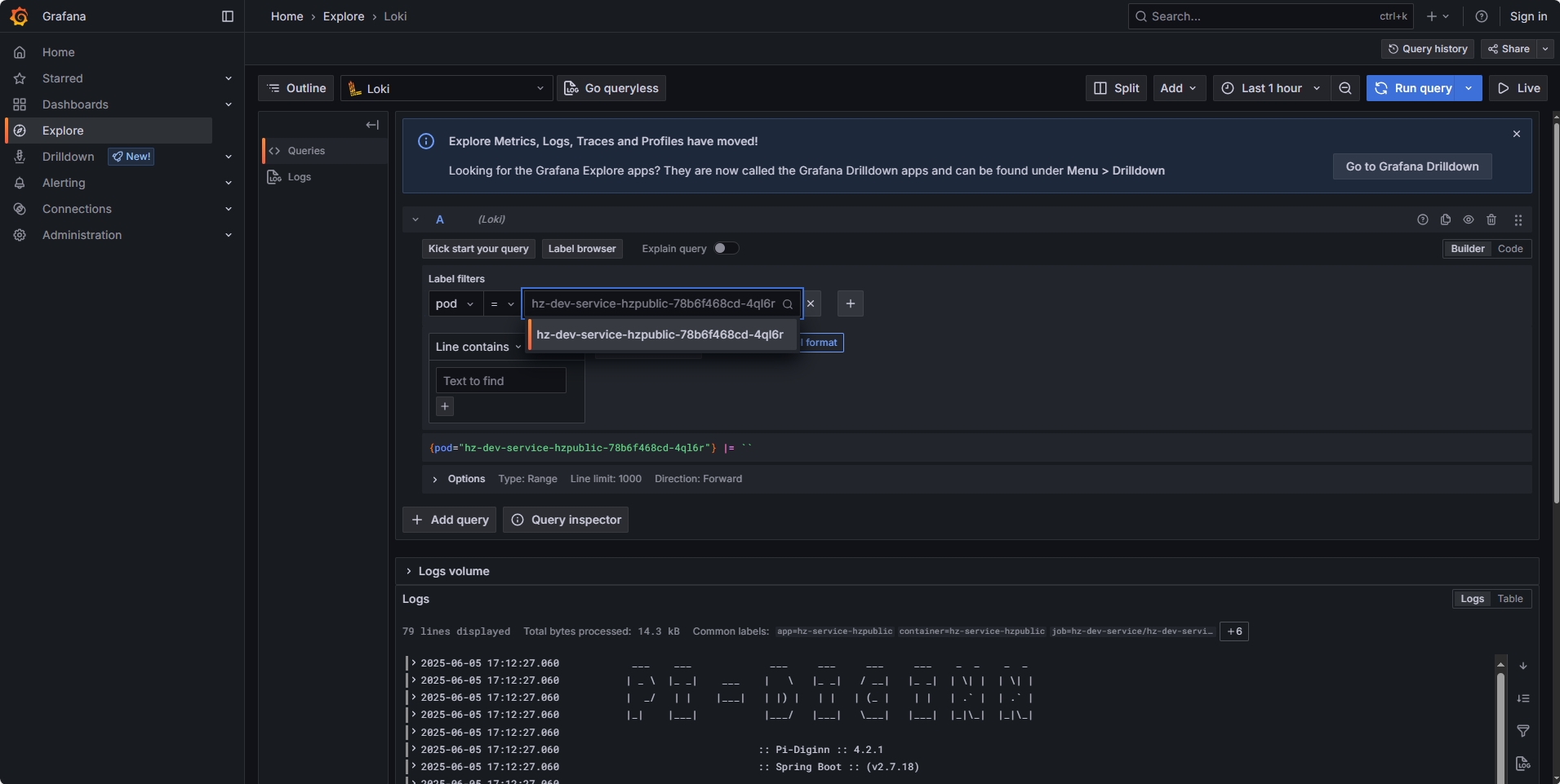

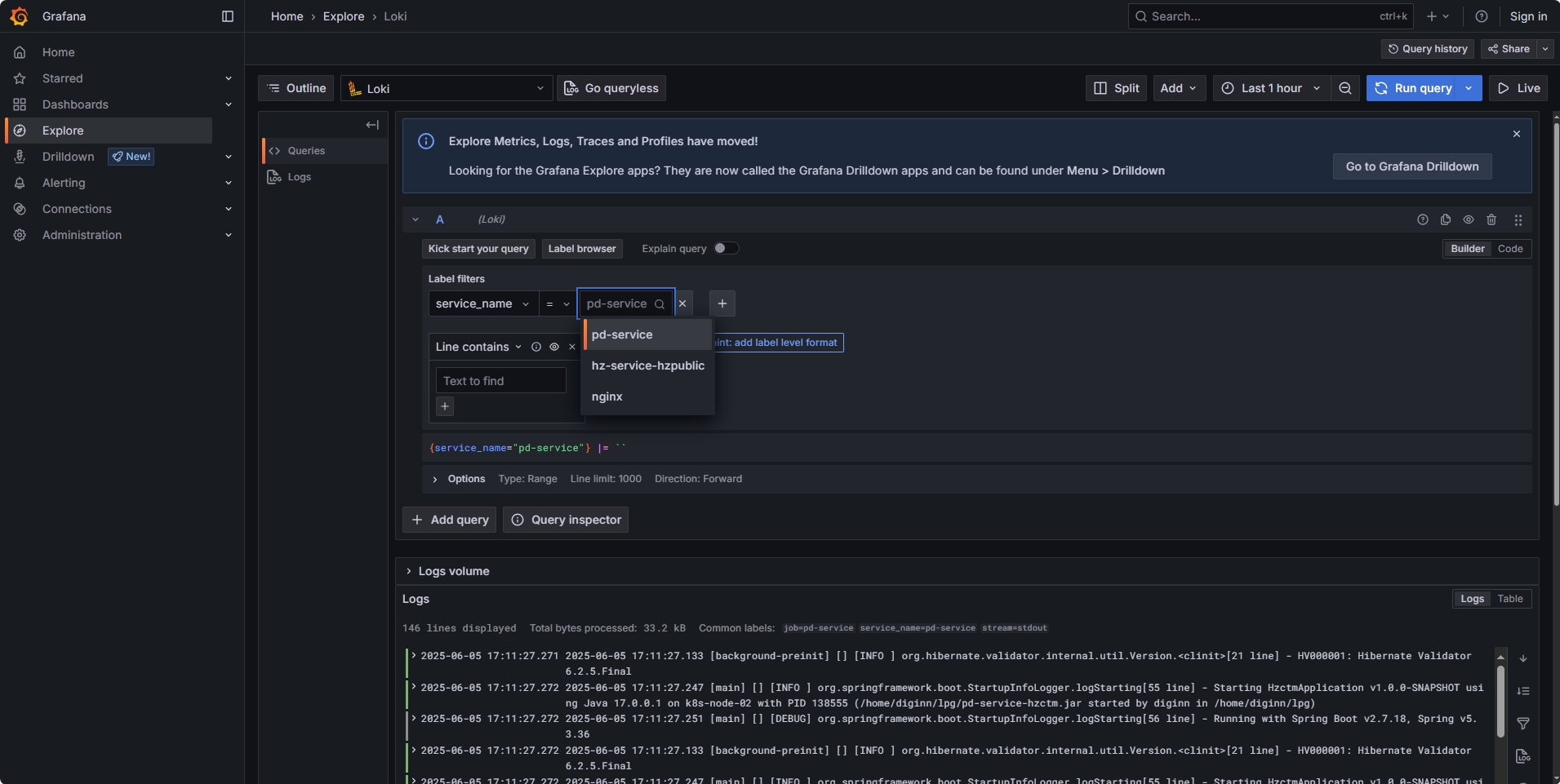

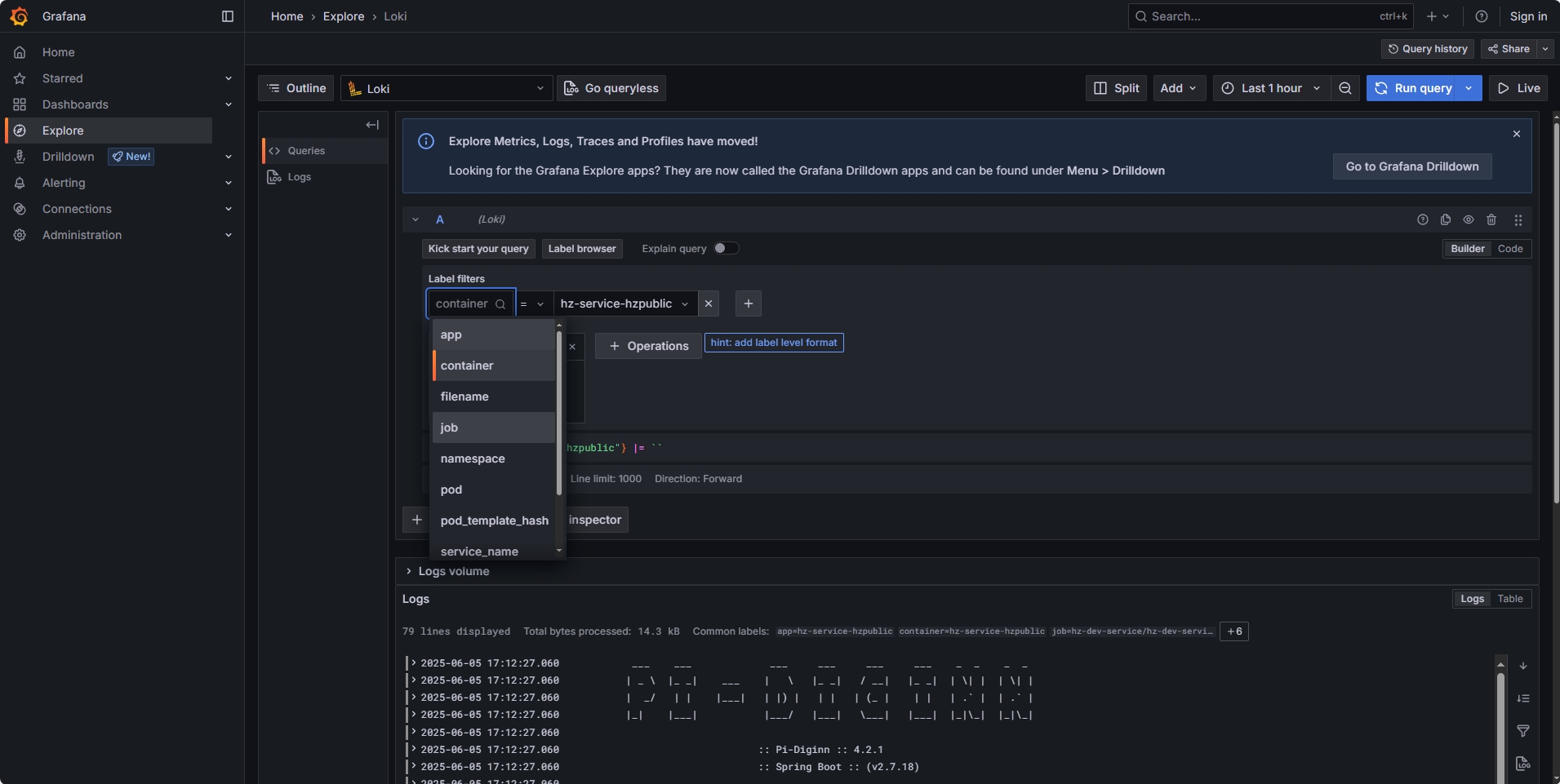

- Grafana 面板查看日志
1. 部署Loki + Grafana
Docker Compose 部署
Docker Compose配置文件 docker-compose.yaml
version: "3.3"
networks:
loki:
services:
loki:
image: grafana/loki:3.5.1
ports:
- "3100:3100"
command: -config.file=/etc/loki/local-config.yaml
environment:
- TZ=Asia/Shanghai
networks:
- loki
# promtail:
# image: grafana/promtail:3.5.1
# volumes:
# - /var/log:/var/log
# command: -config.file=/etc/promtail/config.yml
# networks:
# - loki
grafana:
environment:
- GF_PATHS_PROVISIONING=/etc/grafana/provisioning
- GF_AUTH_ANONYMOUS_ENABLED=true
- GF_AUTH_ANONYMOUS_ORG_ROLE=Admin
- GF_FEATURE_TOGGLES_ENABLE=alertingSimplifiedRouting,alertingQueryAndExpressionsStepMode
- TZ=Asia/Shanghai
entrypoint:
- sh
- -euc
- |
mkdir -p /etc/grafana/provisioning/datasources
cat <<EOF > /etc/grafana/provisioning/datasources/ds.yaml
apiVersion: 1
datasources:
- name: Loki
type: loki
access: proxy
orgId: 1
url: http://loki:3100
basicAuth: false
isDefault: true
version: 1
editable: false
EOF
/run.sh
image: grafana/grafana:12.0.1
ports:
- "3000:3000"
networks:
- loki
部署Loki Grafana
# 启动
docker compose -f docker-compose.yaml up -d
# 停止
docker compose -f docker-compose.yaml down
- 浏览器访问Loki监控指标页面
http://192.168.137.121:3100/metrics
- 浏览器访问Grafana页面
http://192.168.137.121:3000admin/admin
K8s部署
Kubernetes 资源定义文件 loki-grafana.yaml
# Namespace定义
apiVersion: v1
kind: Namespace
metadata:
name: lpg
---
# Grafana 服务定义
apiVersion: v1
kind: Service
metadata:
name: grafana
labels:
app: grafana
namespace: lpg
spec:
type: NodePort
ports:
- port: 3000
targetPort: http-grafana
nodePort: 30300
selector:
app: grafana
---
# Grafana 部署定义
apiVersion: apps/v1
kind: Deployment
metadata:
name: grafana
labels:
app: grafana
namespace: lpg
spec:
replicas: 1
selector:
matchLabels:
app: grafana
template:
metadata:
labels:
app: grafana
spec:
containers:
- name: grafana
image: grafana/grafana:12.0.1
imagePullPolicy: IfNotPresent
ports:
- containerPort: 3000
name: http-grafana
protocol: TCP
# 添加安全上下文 0 为 root用户
securityContext:
runAsUser: 0
env:
- name: GF_AUTH_BASIC_ENABLED
value: "true"
- name: GF_AUTH_ANONYMOUS_ENABLED
value: "false"
readinessProbe:
failureThreshold: 3
httpGet:
path: /robots.txt
port: 3000
scheme: HTTP
initialDelaySeconds: 10
periodSeconds: 30
successThreshold: 1
timeoutSeconds: 2
livenessProbe:
failureThreshold: 3
initialDelaySeconds: 30
periodSeconds: 10
successThreshold: 1
tcpSocket:
port: 3000
timeoutSeconds: 1
resources:
requests:
cpu: 250m
memory: 250Mi
limits:
cpu: '1'
memory: 2Gi
volumeMounts:
- name: storage
mountPath: /var/lib/grafana
volumes:
- name: storage
hostPath:
path: /home/diginn/lpg/grafana
---
# Loki 账号定义
apiVersion: v1
kind: ServiceAccount
metadata:
name: loki
namespace: lpg
---
# Loki 角色定义
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
name: loki
namespace: lpg
rules:
- apiGroups: ["extensions"]
resources: ["podsecuritypolicies"]
verbs: ["use"]
resourceNames: [loki]
---
# Loki 角色绑定定义
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
name: loki
namespace: lpg
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: loki
subjects:
- kind: ServiceAccount
name: loki
---
# Loki配置文件
apiVersion: v1
kind: ConfigMap
metadata:
name: loki
namespace: lpg
labels:
app: loki
data:
loki.yaml: |
auth_enabled: false
server:
http_listen_port: 3100
common:
instance_addr: 127.0.0.1
path_prefix: /data/loki
storage:
filesystem:
chunks_directory: /data/loki/chunks
rules_directory: /data/loki/rules
replication_factor: 1
ring:
kvstore:
store: inmemory
schema_config:
configs:
- from: 2020-10-24
store: tsdb
object_store: filesystem
schema: v13
index:
prefix: index_
period: 24h
ruler:
alertmanager_url: http://localhost:9093
---
# Loki 服务定义
apiVersion: v1
kind: Service
metadata:
name: loki
namespace: lpg
labels:
app: loki
spec:
type: NodePort
ports:
- port: 3100
protocol: TCP
name: http-metrics
targetPort: http-metrics
nodePort: 30310
selector:
app: loki
---
# Loki StatefulSet定义
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: loki
namespace: lpg
labels:
app: loki
spec:
podManagementPolicy: OrderedReady
replicas: 1
selector:
matchLabels:
app: loki
serviceName: loki
updateStrategy:
type: RollingUpdate
template:
metadata:
labels:
app: loki
spec:
serviceAccountName: loki
initContainers:
- name: chmod-data
image: busybox:1.28.4
imagePullPolicy: IfNotPresent
command: ["chmod","-R","777","/loki/data"]
volumeMounts:
- name: storage
mountPath: /loki/data
containers:
- name: loki
image: grafana/loki:3.5.1
imagePullPolicy: IfNotPresent
args:
- -config.file=/etc/loki/loki.yaml
ports:
- name: http-metrics
containerPort: 3100
protocol: TCP
# 添加安全上下文 id
securityContext:
runAsUser: 1000
runAsGroup: 1000
livenessProbe:
httpGet:
path: /ready
port: http-metrics
scheme: HTTP
initialDelaySeconds: 45
readinessProbe:
httpGet:
path: /ready
port: http-metrics
scheme: HTTP
initialDelaySeconds: 45
volumeMounts:
- name: config
mountPath: /etc/loki
- name: storage
mountPath: /data
terminationGracePeriodSeconds: 4800
volumes:
- name: config
configMap:
name: loki
- name: storage
hostPath:
path: /home/diginn/lpg/loki
*.namespace: lpggrafana.hostPath.path: /home/diginn/lpg/grafanagrafana.ports[*].port.nodePort: 30300loki.hostPath.path: /home/diginn/lpg/lokiloki.ports[*].port.nodePort: 30310
部署资源
# 创建命名空间
kubectl get ns lpg
kubectl create ns lpg
# 部署
kubectl apply -f loki-grafana.yaml
# 删除
kubectl delete -f loki-grafana.yaml
# 检查 Pod 状态
kubectl get pods -l 'app in (loki, grafana)' -n lpg -o wide
kubectl get services -n lpg -o wide
# 查看日志
kubectl logs loki-0 -n lpg
kubectl logs grafana-756cfd5f8f-qdr4k -n lpg
- 浏览器访问Loki监控指标页面
http://192.168.137.121:30310/metrics
- 浏览器访问Grafana页面
http://192.168.137.121:30300admin/admin
2. K8s DaemonSet部署Promtail
Promtail DaemonSet配置文件 promtail-daemonset.yaml
--- # Daemonset.yaml
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: promtail-daemonset
spec:
selector:
matchLabels:
name: promtail
template:
metadata:
labels:
name: promtail
spec:
serviceAccount: promtail-serviceaccount
containers:
- name: promtail-container
image: grafana/promtail
args:
- -config.file=/etc/promtail/promtail.yaml
env:
- name: 'HOSTNAME' # needed when using kubernetes_sd_configs
valueFrom:
fieldRef:
fieldPath: 'spec.nodeName'
volumeMounts:
- name: logs
mountPath: /var/log
- name: promtail-config
mountPath: /etc/promtail
- mountPath: /var/lib/docker/containers
name: varlibdockercontainers
readOnly: true
volumes:
- name: logs
hostPath:
path: /var/log
- name: varlibdockercontainers
hostPath:
path: /var/lib/docker/containers
- name: promtail-config
configMap:
name: promtail-config
--- # configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: promtail-config
data:
promtail.yaml: |
server:
http_listen_port: 9080
grpc_listen_port: 0
clients:
- url: http://192.168.137.121:3100/loki/api/v1/push # 注意这里的协议为 HTTP，IP 端口为Loki映射的物理机IP 端口
- url: http://loki.lpg:3100/loki/api/v1/push # 如果是在同一个K8s中，可以使用 <服务名.命名空间> 例如: loki.lpg
positions:
filename: /tmp/positions.yaml
target_config:
sync_period: 10s
scrape_configs:
- job_name: pod-logs
kubernetes_sd_configs:
- role: pod
pipeline_stages:
- docker: {}
relabel_configs:
# 检查是否有标注为promtail.io/scrape=true的注解，没有注解的pod不采集
- source_labels: [__meta_kubernetes_pod_annotation_promtail_io_scrape]
action: keep
regex: true
- source_labels:
- __meta_kubernetes_pod_node_name
target_label: __host__
- action: labelmap
regex: __meta_kubernetes_pod_label_(.+)
- action: replace
replacement: $1
separator: /
source_labels:
- __meta_kubernetes_namespace
- __meta_kubernetes_pod_name
target_label: job
- action: replace
source_labels:
- __meta_kubernetes_namespace
target_label: namespace
- action: replace
source_labels:
- __meta_kubernetes_pod_name
target_label: pod
- action: replace
source_labels:
- __meta_kubernetes_pod_container_name
target_label: container
- replacement: /var/log/pods/*$1/$2/*.log # $1=pod_uid, $2=container_name
separator: /
source_labels:
- __meta_kubernetes_pod_uid
- __meta_kubernetes_pod_container_name
target_label: __path__
--- # Clusterrole.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: promtail-clusterrole
rules:
- apiGroups: [""]
resources:
- nodes
- services
- pods
verbs:
- get
- watch
- list
--- # ServiceAccount.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
name: promtail-serviceaccount
--- # Rolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: promtail-clusterrolebinding
subjects:
- kind: ServiceAccount
name: promtail-serviceaccount
namespace: default
roleRef:
kind: ClusterRole
name: promtail-clusterrole
apiGroup: rbac.authorization.k8s.io
Promtail DaemonSet部署
# 部署 Promtail DaemonSet
kubectl apply -f promtail-daemonset.yaml
# 删除
kubectl delete -f promtail-daemonset.yaml
# 查询出 Pod 以及它们部署到的节点
kubectl get pods -l name=promtail -o wide
# 查询DaemonSet 的信息
kubectl get daemonset
DaemonSet其他相关命令
# 删除Daemonset
kubectl delete daemonset/promtail-daemonset
# 查看Daemonset状态及异常原因
kubectl describe pod promtail-daemonset-99bhj
# 查看配置文件
kubectl exec -it promtail-daemonset-99bhj -- cat /etc/promtail/promtail.yaml
# 列出所有的 ConfigMap
kubectl get cm
# 查看 ConfigMap 配置详情
kubectl describe cm promtail-config
# 删除 ConfigMap
kubectl delete cm promtail-config
3. K8s 部署Spring Boot应用
构建Docker镜像的 Dockerfile
FROM 192.168.1.210:5000/azul/zulu-openjdk-centos:17-jre-latest
VOLUME /tmp
ADD pd-service-hzpublic.jar /
ENV JAVA_OPTS="-Xms1g -Xmx1g -XX:MetaspaceSize=512m -XX:MaxMetaspaceSize=512m \
-Duser.timezone=Asia/Shanghai \
-Dfile.encoding=UTF-8 \
-Dsun.jnu.encoding=UTF-8 \
-Djava.awt.headless=true \
--add-modules java.se \
--add-opens java.base/java.lang=ALL-UNNAMED \
--add-opens java.base/sun.nio.ch=ALL-UNNAMED \
--add-opens java.management/sun.management=ALL-UNNAMED \
--add-opens jdk.management/com.sun.management.internal=ALL-UNNAMED \
--add-exports java.base/jdk.internal.ref=ALL-UNNAMED"
ENTRYPOINT java ${JAVA_OPTS} -jar /pd-service-hzpublic.jar
应用部署的 k8s-dev.yaml
apiVersion: v1
kind: Service
metadata:
name: svc-dz-service-hzpublic
namespace: hz-dev-service
spec:
type: NodePort
selector:
app: hz-service-hzpublic
ports:
- name: http
port: 31121
targetPort: 31121
nodePort: 30121
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: hz-dev-service-hzpublic
namespace: hz-dev-service
spec:
minReadySeconds: 50
revisionHistoryLimit: 3
strategy:
rollingUpdate:
maxSurge: 1
maxUnavailable: 0
replicas: 1
selector:
matchLabels:
app: hz-service-hzpublic
version: "1.0.0"
template:
metadata:
labels:
app: hz-service-hzpublic
version: "1.0.0"
annotations:
promtail.io/scrape: "true" # promtail筛选标签，需要设置scrape为true
promtail.io/path: "/logs/pd-service-hzpublic-all.log" # 日志文件的路径名称
spec:
imagePullSecrets:
- name: pisxdocker
containers:
- name: hz-service-hzpublic
image: 192.168.1.210:5000/library/pd-service-hzpublic:lpg-1.0.0
imagePullPolicy: IfNotPresent
ports:
- containerPort: 31121
volumeMounts:
- name: logs-hz-service-hzpublic
mountPath: /logs
# 启动探针，检测系统是否启动成功
startupProbe:
httpGet:
path: /hzpublic/actuator/health/readiness
port: 31121
periodSeconds: 10 # 探测时间间隔
timeoutSeconds: 5 # 超时时间
failureThreshold: 30 # 重试次数
# 存活探针，检测系统是否存活
livenessProbe:
httpGet:
path: /hzpublic/actuator/health/liveness
port: 31121
initialDelaySeconds: 30
periodSeconds: 10
timeoutSeconds: 20
failureThreshold: 5
resources:
limits:
cpu: "2"
memory: "2048Mi"
ephemeral-storage: "2Gi"
requests:
cpu: "0.2"
memory: "1024Mi"
env:
- name: TZ
value: 'Asia/Shanghai'
volumes:
- name: logs-hz-service-hzpublic
hostPath:
path: /data/logs
编译镜像并使用K8s部署应用
# 拉取基础镜像
docker pull azul/zulu-openjdk-centos:17-jre-latest
# 重新打tag
docker tag azul/zulu-openjdk-centos:17-jre-latest 192.168.1.210:5000/azul/zulu-openjdk-centos:17-jre-latest
# 构建镜像
docker build -t 192.168.1.210:5000/library/pd-service-hzpublic:lpg-1.0.0 .
# 导出镜像
docker save 192.168.1.210:5000/library/pd-service-hzpublic:lpg-1.0.0 -o pd-service-hzpublic_lpg-1.0.0.tar
# 发送到集群其他节点
scp zulu-openjdk-centos_17-jre-latest.tar diginn@192.168.137.122:/home/diginn
scp pd-service-hzpublic_lpg-1.0.0.tar diginn@192.168.137.122:/home/diginn
# 在集群其他节点导入镜像
docker load -i zulu-openjdk-centos_17-jre-latest.tar
docker load -i pd-service-hzpublic_lpg-1.0.0.tar
# 创建命名空间
kubectl create namespace hz-dev-service
kubectl get namespace hz-dev-service
# 如有需要，先删除再部署服务
kubectl delete -f k8s-dev.yaml
kubectl apply -f k8s-dev.yaml
# 查询Pod
kubectl get pods -n hz-dev-service -o wide
# 查询pod详细信息
kubectl describe pod hz-dev-service-hzpublic-78b6f468cd-x6zjb -n hz-dev-service
# 进入命令行交互模式，查看日志文件的位置
kubectl exec -it hz-dev-service-hzpublic-78b6f468cd-x6zjb -n hz-dev-service -- /bin/bash
4. 本地部署 Spring Boot Jar包
配置环境变量
# 配置环境变量
cat >> ~/.bashrc << 'EOF'
export JAVA_HOME=/home/diginn/jdk-17.0.0.1
export PATH=$JAVA_HOME/bin:$PATH
EOF
# 加载环境变量
source ~/.bashrc
java --version
# 运行jar包
nohup java -jar pd-service-hzctm.jar > /dev/null 2>&1 &
# 日志位置
/home/diginn/logs/pd-service-hzctm-all.log
启停脚本
# 启动脚本
cat > startup.sh << 'EOF'
#!/bin/bash
nohup java -jar pd-service-hzctm.jar > /dev/null 2>&1 &
echo "$!" > pid
EOF
# 停止脚本
cat > shutdown.sh << 'EOF'
#!/bin/bash
kill -9 `cat pid`
echo "关闭成功!"
EOF
# 脚本添加执行权限
chmod +x startup.sh shutdown.sh
启动服务
./startup.sh
如果要输出JSON格式的日志，可参考下面文章
<dependency>
<groupId>net.logstash.logback</groupId>
<artifactId>logstash-logback-encoder</artifactId>
<version>7.4</version>
</dependency>
修改logback配置:
<appender name="console" class="ch.qos.logback.core.ConsoleAppender">
<encoder charset="UTF-8" class="net.logstash.logback.encoder.LoggingEventCompositeJsonEncoder">
<providers>
<pattern>
<pattern>
{
<!--服务名称-->
"appName": "${appName}",
<!--打印时间-->
"time": "%date{yyyy-MM-dd HH:mm:ss.SSS}",
<!--日志级别-->
"level": "%level",
<!--进程ID-->
"pid": "${PID:-}",
<!--线程名-->
"thread": "%thread",
<!--全限定类名-->
"class": "%logger",
<!--类中的哪个方法-->
"method": "%method",
<!--类中的第几行-->
"line": "%line",
<!--日志打印的信息-->
"message": "%message",
<!--堆栈异常信息-->
"statck_trace":"%xEx"
}
</pattern>
</pattern>
</providers>
</encoder>
</appender>
5. 本地部署 Nginx
# 在线安装编译依赖
# sudo yum install gcc gcc-c++ make zlib zlib-devel pcre pcre-devel openssl openssl-devel
# 下载依赖包
dnf download --archlist=x86_64,noarch --resolve --destdir=./lib/gcc gcc
dnf download --archlist=x86_64,noarch --resolve --destdir=./lib/gcc-c++ gcc-c++
dnf download --archlist=x86_64,noarch --resolve --destdir=./lib/make make
dnf download --archlist=x86_64,noarch --resolve --destdir=./lib/pcre pcre
dnf download --archlist=x86_64,noarch --resolve --destdir=./lib/pcre pcre-devel
dnf download --archlist=x86_64,noarch --resolve --destdir=./lib/zlib zlib
dnf download --archlist=x86_64,noarch --resolve --destdir=./lib/zlib zlib-devel
dnf download --archlist=x86_64,noarch --resolve --destdir=./lib/openssl openssl
dnf download --archlist=x86_64,noarch --resolve --destdir=./lib/openssl openssl-devel
# 安装依赖
sudo dnf install -y ./lib/gcc/*.rpm
sudo dnf install -y ./lib/gcc-c++/*.rpm
sudo dnf install -y ./lib/make/*.rpm
sudo dnf install -y ./lib/pcre/*.rpm
sudo dnf install -y ./lib/zlib/*.rpm
sudo dnf install -y ./lib/openssl/*.rpm
# 下载
wget https://nginx.org/download/nginx-1.28.0.tar.gz
# 解压
tar -zxvf nginx-1.28.0.tar.gz
cd nginx-1.28.0
# 编译配置
sudo mkdir -p /var/temp/nginx
./configure \
--prefix=/usr/local/nginx \
--conf-path=/usr/local/nginx/conf/nginx.conf \
--pid-path=/usr/local/nginx/conf/nginx.pid \
--lock-path=/var/lock/nginx.lock \
--error-log-path=/var/log/nginx/error.log \
--http-log-path=/var/log/nginx/access.log \
--with-http_gzip_static_module \
--http-client-body-temp-path=/var/temp/nginx/client \
--http-proxy-temp-path=/var/temp/nginx/proxy \
--http-fastcgi-temp-path=/var/temp/nginx/fastcgi \
--http-uwsgi-temp-path=/var/temp/nginx/uwsgi \
--http-scgi-temp-path=/var/temp/nginx/scgi
# 编译安装
sudo make
sudo make install
# 启动
sudo /usr/local/nginx/sbin/nginx
# 测试
curl http://192.168.137.132
# 注册为服务
cat >> /etc/systemd/system/nginx.service << EOF
[Unit]
Description=The NGINX HTTP and reverse proxy server
After=network-online.target remote-fs.target nss-lookup.target
Wants=network-online.target
[Service]
Type=forking
PIDFile=/usr/local/nginx/conf/nginx.pid
ExecStartPre=/usr/local/nginx/sbin/nginx -t -q -g 'daemon on; master_process on;'
ExecStart=/usr/local/nginx/sbin/nginx -g 'daemon on; master_process on;'
ExecReload=/usr/local/nginx/sbin/nginx -s reload
KillMode=process
Restart=on-failure
RestartSec=5s
PrivateTmp=true
[Install]
WantedBy=multi-user.target
EOF
# 设置开机运行
sudo systemctl daemon-reload
sudo systemctl start nginx.service
sudo systemctl enable nginx.service # 使Nginx在启动时自动运行
sudo systemctl status nginx.service
# 日志位置
/var/log/nginx/access.log
/var/log/nginx/error.log
可以在nginx配置文件 /usr/local/nginx/conf/nginx.conf 中添加如下内容，将nginx日志改为json格式
##
# Logging Settings
##
log_format access_json escape=json
'{'
'"@timestamp":"$time_iso8601",'
'"host":"$server_addr",'
'"clientip":"$remote_addr",'
'"size":$body_bytes_sent,'
'"responsetime":$request_time,'
'"upstreamtime":"$upstream_response_time",'
'"upstreamhost":"$upstream_addr",'
'"request":"$request",'
'"uri":"$uri",'
'"domain":"$host",'
'"x_forwarded_for":"$http_x_forwarded_for",'
'"referer":"$http_referer",'
'"tcp_xff":"$proxy_protocol_addr",'
'"http_user_agent":"$http_user_agent",'
'"status":"$status"'
'}';
access_log /var/log/nginx/access.log access_json;
6. Promtail 收集本地日志
- Promtail配置pipeline stage json
- Promtail配置pipeline stage timestamp
- promtail解析json tag
- Grafana Loki笔记06: 使用Promtail收集Java应用日志发送给Loki
- Loki系统中使用Promtail处理解析SpringBoot的Log日志
收集本地日志采用二进制的方式安装，步骤参考上面章节
修改配置文件，采集SpringBoot及Nginx日志 promtail-local-config.yaml
server:
http_listen_port: 9080
grpc_listen_port: 0
positions:
filename: /tmp/positions.yaml
clients:
- url: http://192.168.137.121:3100/loki/api/v1/push
scrape_configs:
- job_name: nginx-json
# 抓取本地Nginx日志
static_configs:
- targets:
- localhost
labels:
job: nginx
__path__: /var/log/nginx/*.log
# 给文件打标签，不同类型的文件采用不同的解析策略
relabel_configs:
- source_labels: [__path__]
regex: .*
action: replace
target_label: log_type
replacement: text # 默认类型
- source_labels: [__path__]
regex: .*(access).* # accesslog格式改为json了，使用json解析
replacement: json
target_label: log_type
pipeline_stages:
# 解析普通文本
- match:
selector: '{log_type="text"}'
stages:
# - debug:
# message: 'File: {{ .__path__ }} | Log type: {{ .log_type }} | __Log type__: {{ .__log_type__ }}'
- regex:
expression: '^(?P<timestamp>\d{4}/\d{2}/\d{2} \d{2}:\d{2}:\d{2}) \[(?P<level>\w+)\] (?P<pid>\d+)\#(?P<tid>\d+): \*(?P<message>.*)$'
- json:
output: log
expressions:
timestamp: timestamp
level: level
process_id: pid
thread_id: tid
message: message
# 3. 设置日志时间戳
- timestamp:
source: timestamp
format: "2006/01/02 15:04:05"
location: Asia/Shanghai # 如果日志时间字符串是北京时间（UTC+8）
# 4. 将关键字段转为标签（低基数字段）
- labels:
level:
# 5. 添加结构化元数据（高基数字段）
- structured_metadata:
process_id:
thread_id:
# 解析json
- match:
selector: '{log_type="json"}'
stages:
- json:
expressions:
timestamp: '"@timestamp"'
host: host
clientip: clientip
size: size
responsetime: responsetime
upstreamtime: upstreamtime
upstreamhost: upstreamhost
request: request
uri: uri
domain: domain
x_forwarded_for: x_forwarded_for
referer: referer
tcp_xff: tcp_xff
http_user_agent: http_user_agent
status: status
max_depth: 3 # 防止深层嵌套消耗资源
drop_malformed: true # 丢弃无效JSON
# 2. 设置时间戳
- timestamp:
source: timestamp
format: "2006-01-02 15:04:05.000"
location: Asia/Shanghai # 如果日志时间字符串是北京时间（UTC+8）
# 3. 添加结构化元数据（使字段显示在 Parsed Fields）
- structured_metadata:
clientip:
x_forwarded_for:
request:
domain:
uri:
status:
- job_name: pd-service
# 抓取本地SpringBoot日志
static_configs:
- targets:
- localhost
labels:
job: pd-service
__path__: /home/diginn/logs/*.log
# 给文件打标签，不同类型的文件采用不同的解析策略
relabel_configs:
- source_labels: [__path__]
regex: .*
action: replace
target_label: log_type
replacement: text # 默认类型
- source_labels: [__path__]
regex: .*(json).* # json格式的日志名称中包含 json
replacement: json
target_label: log_type
pipeline_stages:
# 解析普通文本
- match:
selector: '{log_type="text"}'
stages:
# - debug:
# message: 'File: {{ .__path__ }} | Log type: {{ .log_type }} | __Log type__: {{ .__log_type__ }}'
# 1. 使用正则提取所有字段 %d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] [%X{requestId}] [%-5level] %C.%M[%L line] - %m%n
- regex:
expression: '^(?P<timestamp>\d{4}-\d{2}-\d{2} \d{2}:\d{2}:\d{2}\.\d{3}) \[(?P<thread>[^\]]*)\] \[(?P<request_id>[^\]]*)\] \[(?P<level>\w+)\s*\] (?P<class>\w+(?:\.\w+)*)\.(?P<method>\w+)\[(?P<line>\d+) line\] - (?P<message>.*)$'
# 2. 清理 level 字段的空格（Log4j2 左对齐补空格）
- replace:
source: level
expression: '\s+$'
replace: ''
# 3. 设置日志时间戳
- timestamp:
source: timestamp
format: "2006-01-02 15:04:05.000"
location: Asia/Shanghai # 如果日志时间字符串是北京时间（UTC+8）
# 4. 将关键字段转为标签（低基数字段）
- labels:
level:
request_id:
# 5. 添加结构化元数据（高基数字段）
- structured_metadata:
thread: thread # 引用 regex 提取的字段
class: class
method: method
line: line
# - template:
# source: new_line
# template: 'logger={{ .class }} threadName={{ .thread }} methodName={{ .method }} line={{ .line }} | {{ or .message .stack_trace }}'
# - output:
# source: new_line
# 解析json
- match:
selector: '{log_type="json"}'
stages:
# 1. 解析 JSON 并提取字段
- json:
expressions:
thread: thread
threadId: threadId
level: level
loggerName: loggerName
message: message
requestId: requestId
timestamp: timestamp
max_depth: 3 # 防止深层嵌套消耗资源
drop_malformed: true # 丢弃无效JSON
# 2. 设置时间戳
- timestamp:
source: timestamp
format: "2006-01-02 15:04:05.000"
location: Asia/Shanghai # 如果日志时间字符串是北京时间（UTC+8）
# 3. 添加结构化元数据（使字段显示在 Parsed Fields）
- structured_metadata:
thread:
threadId:
level:
loggerName:
requestId:
启停脚本
# 启动脚本
cat > startup.sh << 'EOF'
#!/bin/bash
nohup ./promtail-linux-amd64 -config.file=promtail-local-config.yaml >./promtail.log 2>&1 &
echo "$!" > pid
EOF
# 停止脚本
cat > shutdown.sh << 'EOF'
#!/bin/bash
kill -9 `cat pid`
echo "关闭成功!"
EOF
# 脚本添加执行权限
chmod +x startup.sh shutdown.sh
启动Promtail
./startup.sh
浏览器访问 http://192.168.137.132:9080/targets
7. 效果展示
可以使用 promtail job, service_name, filename 等维度对日志进行筛选
对于K8s部署的服务，还能使用 pod名称 namespace，container等维度进行筛选
8. 创建监控面板
常见问题
1. 使用官方文档提供的配置文件启动Loki报错
- 报错信息
failed parsing config: ./loki-local-config.yaml: yaml: unmarshal errors:
line 54: field enable_multi_variant_queries not found in type logql.EngineOpts. Use `-config.expand-env=true` flag if you want to expand environment variables in your config file
- 异常原因
- Deprecated fields in loki-local-config causing unmarshal error
如Issue中描述的，最新版本中
enable_multi_variant_queries配置从querier.engine移动到了limits_config下，修改配置文件，
- 解决方案
limits_config:
metric_aggregation_enabled: true
# 添加下面行
+ enable_multi_variant_queries: true
# 删除下面行
-querier:
- engine:
- enable_multi_variant_queries: true
2. 使用K8s部署Loki时部分容器启动失败 pod has unbound immediate PersistentVolumeClaims
- 报错信息
# Loki启动失败
kubectl describe pod loki-0 -n loki
# Minio启动失败
kubectl describe pod loki-minio-0 -n loki
# 错误信息
Type Reason Age From Message
---- ------ ---- ---- -------
Warning FailedScheduling 11m (x4 over 22m) default-scheduler 0/6 nodes are available: pod has unbound immediate PersistentVolumeClaims. preemption: 0/6 nodes are available: 6 Preemption is not helpful for scheduling.
Warning FailedScheduling 85s (x5 over 10m) default-scheduler 0/6 nodes are available: pod has unbound immediate PersistentVolumeClaims. preemption: 0/6 nodes are available: 6 Preemption is not helpful for scheduling.
- 错误原因
- 未绑定的 PVC：Pod 依赖的持久卷声明没有找到匹配的持久卷
- 无法抢占：调度器无法通过驱逐其他 Pod 来解决此问题（因为存储问题无法通过抢占解决）
- 所有节点不可用：所有节点都报告此问题（但实际是存储问题，不是节点问题）
- 解决方案
# 识别未绑定的 PVC
kubectl get pvc -n loki
# 检查 PVC 详情
kubectl describe pvc storage-loki-0 -n loki
# 检查 PV 可用性
kubectl get pv
# 检查 StorageClass
kubectl get storageclass
kubectl describe storageclass <sc-name>
# 上面 kubectl get pv 和 kubectl get storageclass 都无返回信息
# 需要安装持久化存储系统
- 安装持久化存储系统
# 添加 Rook 仓库
helm repo add rook-release https://charts.rook.io/release
# 拉取chart安装包
helm pull rook-release/rook-ceph
# 下载ceph-chart文件
wget https://raw.githubusercontent.com/rook/rook/master/deploy/examples/cluster.yaml rook-ceph-cluster.yaml
# 安装 Rook Ceph
helm install rook-ceph rook-release/rook-ceph --create-namespace --namespace rook-ceph
# 创建 Ceph 集群
kubectl apply -f rook-ceph-cluster.yaml
# 查看Ceph Pod
kubectl get pods -n rook-ceph -o wide
# 卸载 ceph
helm uninstall rook-ceph --namespace rook-ceph
3. 使用K8s部署Loki时部分容器启动失败 Insufficient memory
- 报错信息
# 分片缓存启动失败
kubectl describe pod loki-chunks-cache-0 -n loki
# 错误信息
Type Reason Age From Message
---- ------ ---- ---- -------
Warning FailedScheduling 7m24s (x7 over 18m) default-scheduler 0/6 nodes are available: 6 Insufficient memory. preemption: 0/6 nodes are available: 6 No preemption victims found for incoming pod.
Warning FailedScheduling 2m (x2 over 7m) default-scheduler 0/6 nodes are available: 6 Insufficient memory. preemption: 0/6 nodes are available: 6 No preemption victims found for incoming pod.
- 错误原因
- 核心问题：所有 6 个节点都没有足够内存来运行 Pod
- 调度器尝试：Kubernetes 调度器尝试通过"抢占"(preemption)释放资源（驱逐低优先级 Pod），但没有找到合适的候选
- 根本原因：该 Pod 请求的内存超过了集群中任何节点的可用内存
- 解决方案
values.yaml中memcached默认内存设置为chunksCache.allocatedMemory: 8192- 在
loki-values.yaml中配置chunksCache.allocatedMemory: 1024来覆盖默认配置
chunksCache:
allocatedMemory: 8192
# 改为
chunksCache:
allocatedMemory: 1024
